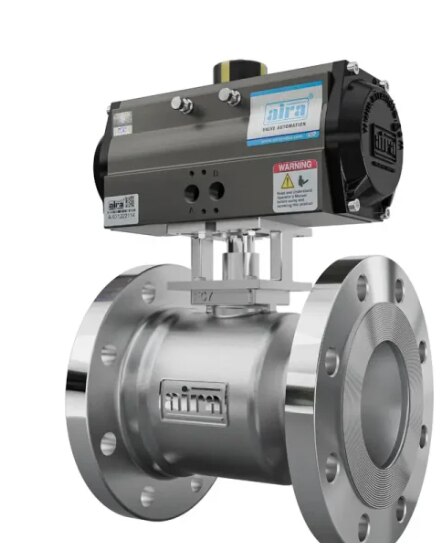

Design & Manufacturer BS EN ISO 17292 / ASME B 16.34 Valve Face To Face Dimension ASME B 16.10 - 300# Inspection & Testing API 598 / ISO-5208 / BS EN 12266-1 Temperature Range PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250 Media Air / Water / Oil & Gas Ball Material CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M Stem Material Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel Flange Drilling Asme B 16.5 Class 300#/ Din/ Jis Leakage Class ISO 5208 Class VI / B16.104 , ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF) End Connection ASME B 16.5 CLASS 300 FOR FLANGE END Size Range 1/2“ to 6” Flanged 300# Pressure Class 300# Body Material CAST IRON(CI), DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL Ball Type Hollow & Solid Seat Material PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK Low Operating Torque Positive Shut Off Quick In Action Compact Design Longer Smooth Life Locking Handle Available Direct Mounting As Per ISO 5211
