Model HFL
Size 2.1/2“, 3”, 4"
Body Steel Fabricated
Bowl Steel Fabricated
Element 25 Micron
Pressure Up to 12 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Ends Flanged
Model AF-S
Size 1/4“ to 2”
Body Aluminium Press. Die Cast
Seals Nitrile
Bowl P.C. Bowl / Metal Bowl
Element 25 Micron
Pressure Up to 10 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Model AR-S
Size 1/4“ to 2”
Body Aluminium Press. Die Cast
Seals Nitrile
Pressure Up to 10 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Diaphragm P.U
Model AL-S
Size 1/4“ to 2”
Body Aluminium Press. Die Cast
Seals Nitrile
Bowl P.C. Bowl / Metal Bowl
Pressure Up to 10 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Model AFR-S
Size 1/4“ to 1”
Body Aluminium Press. Die Cast
Seals Nitrile
Bowl P.C. Bowl / Metal Bowl
Element 25 Micron
Pressure Up to 10 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Model AL-S-02 | AL-S-04
Size 1/4“ & 1/2”
Body Aluminium Press. Die Cast
Seals Nitrile
Bowl P.C. Bowl / Metal Bowl
Element 25 Micron
Pressure Up to 10 Kg/Cm²
Temperature Up to 50˚C
Media Compressed Air
Model AFRL-S
Size 1/4“ to 2”
Body Aluminium Press. Die Cast
Seals Nitrile
Bowl P.C. Bowl / Metal Bowl
Element 25 Micron
Pressure Up to 10 Kg/cm²
Temperature Up to 50˚C
Media Compressed Air
Product Details
Model JHFRCLM
Size 1/4“, 3/8”, 1/2“, 3/4”, 1"
Body Aluminium Pressure Die Cast
Seals NBR
Pressure 10 Kg/cm²
Temperature 50˚C
Media Compressed Air
Description

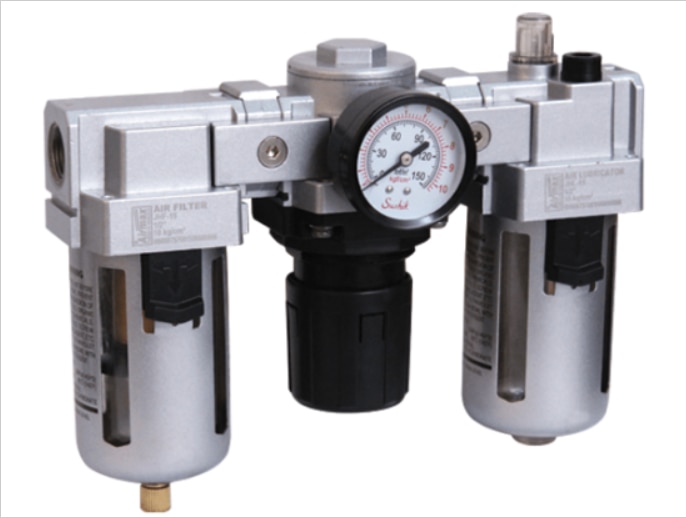

The F + R + L Sets 3pc with Pressure Gauge (Model: JHFRCLM) are designed to provide optimal air filtration, control, and lubrication in pneumatic systems. These high-quality sets, available in 1/4″, 3/8″, 1/2″, 3/4″, and 1″, assure smooth operations and increase the life of your equipment.
These sets are made in-house with high-quality raw materials and include a precise pressure gauge for convenient monitoring. Compatible with ISO VG32 oil for improved lubrication performance, making them a dependable solution for your industrial applications.
For those seeking a simpler solution, the FR + L Sets 2pc With Pressure Gauge offers dependable performance at best price.
Product Details
Model JHFRCLM
Size 1/4“, 3/8”, 1/2“, 3/4”, 1"
Body Aluminium Pressure Die Cast
Seals NBR
Pressure 10 Kg/cm²
Temperature 50˚C
Media Compressed Air
Description

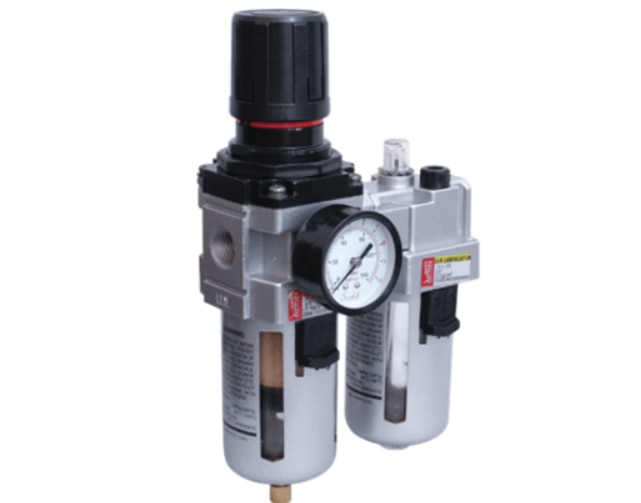

In order to guarantee effective air filtration and lubrication in pneumatic systems, Airmax Pneumatics designed the FR + L Sets 2pc with Pressure Gauge. These sets, available in sizes 1/4″, 3/8″, 1/2″, 3/4″, and 1″, are manufactured of sturdy aluminum pressure die-cast for long-term performance.
These FR + L sets are ideal for industrial applications as they can withstand temperatures up to 50˚C. Trusted for quality, Airmax Pneumatics manufactures and supplies these components for tuned pneumatic system operation.
The F + R + L Sets 3pc With Pressure Gauge offers all the components you need if your application calls for a more complex combination.
Product Details
Model JHFRC
Size 1/4“, 3/8”, 1/2“, 3/4”, 1"
Body Aluminium Pressure Die Cast
Element 25 Micron
Pressure 10 Kg/cm²
Temperature 50˚C
Media Compressed Air
Description

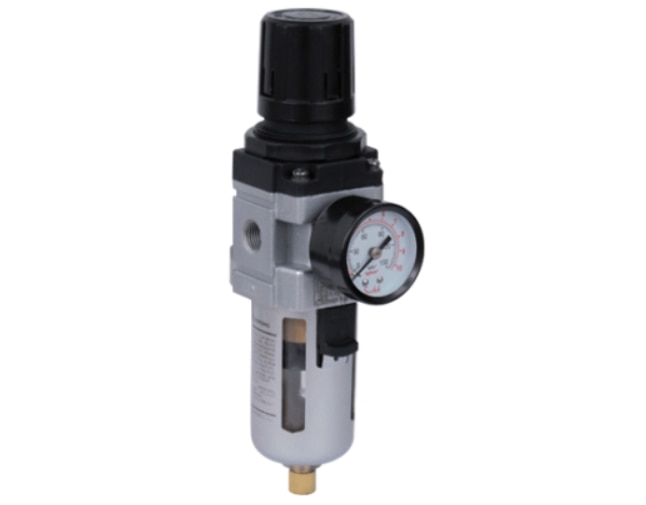

The F + R Combination with Pressure Gauge from Airmax is intended to provide optimal filtration and regulation for your pneumatic systems. With a 25-micron element, it provides clean air while maintaining steady pressure.
This combination provides faster response times and maximum flow rates, making it suited for high-performance applications. Airmax Pneumatics manufacturers, supplies, and exports this robust solution, which improves the efficiency of your pneumatic systems.
If you are looking for the whole Air FRL Set in medium range option then go through the link provided.
Product Details
Model JHL
Size 1/4“, 3/8”, 1/2“, 3/4”, 1"
Body Aluminium Pressure Die Cast
Seals NBR
Pressure 10 Kg/cm²
Temperature 50˚C
Media Compressed Air
Description

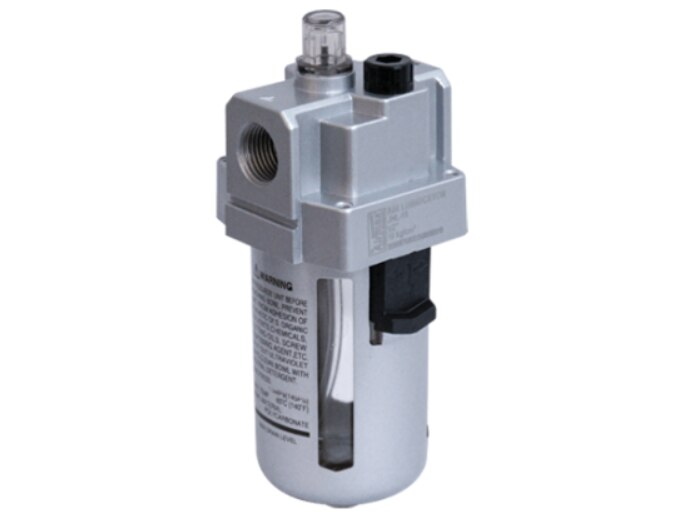

Boost System Longevity with Quality Air Lubrication
By properly lubricating pneumatic systems, the Pneumatic Air Lubricator improves performance and prolongs system life. Its NBR seals provide dependable sealing and prevent leaks, and it was designed in compliance with ISO 6301-1.
Its oil distribution is effective and consistent because its lubrication is proportionate to flow. This lubricant is made in-house with premium raw materials, ensuring dependability and longevity.
Airmax Pneumatics is a manufacturer and supplier of Pneumatic Air Lubricators in India. This lubricator is essential for businesses requiring smooth, maintenance-free operation of their pneumatic systems.
The Premium Pneumatic Air Lubricator is designed for high-end applications requiring precision, whilst the Standard Pneumatic Air Lubricator provides reliable performance at a reasonable price.
