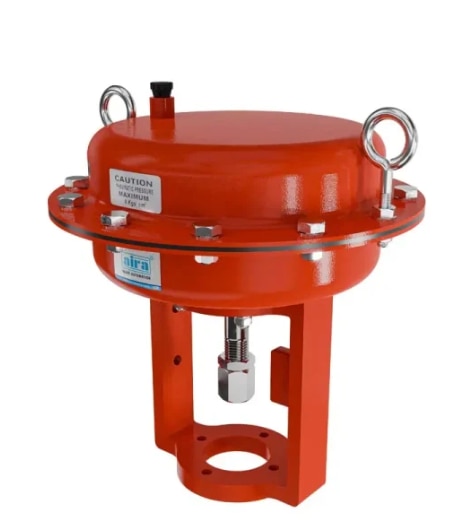

Temperature Range -20°C To 90°C Inlet Air Supply 2.5 To 4 KG/CM² Stem Movement Linear Size Range CND-01-NX To CND-06 Actuator Action Direct Acting / Reverse Acting Air Fail Position Stem Extended / Stem Retracted 1. Flexible Diaphragm: The core component that converts pneumatic pressure into motion, ensuring smooth and reliable operation. 2. Spring Return: Includes a spring mechanism that returns the actuator to a default position when pressure is removed, ensuring fail-safe operation. 3. Safety: With the ability to return to a default position during a failure, pneumatic linear diaphragm actuators help maintain system safety and prevent damage.

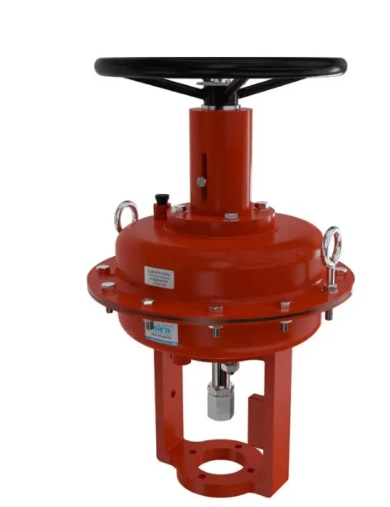

Temperature Range -20°C To 90°C Inlet Air Supply 2.5 To 4 KG/ CM² Stem Movement Linear Size Range CND-01-NX To CND-06 Actuator Action Direct Acting/ Reverse Acting Air Fail Position Stem Extended/ Stem Retracted 1. The actuator uses a flexible diaphragm to convert pneumatic pressure into mechanical motion. This design ensures smooth and efficient operation. 2. The actuator’s stroke length can often be adjusted to match the specific application requirements for precise control of the valve or damper. 3. Diaphragm actuators are typically compact and lightweight, making them suitable for applications where space is limited. 4. A built-in manual override system allows users to manually control the actuator, bypassing the normal pneumatic or electric control. This feature typically involves a handwheel, lever, or an electric motor that can be engaged to override automatic operations.

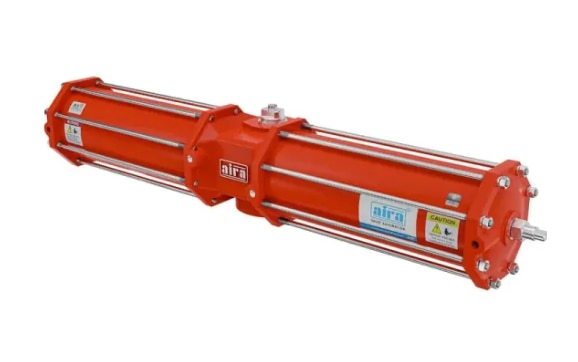

Size Range OJS-288 Temperature Range -20°C To 90°C Pressure Class 4 To 8 Bar Body Material Aluminium Seals Material NBR Pinion EN8 Scotch Yoke Aluminium Features & Benefits 1. For On-Off and modulating. 2. Compact design. 3. Connections according to international standards. 4. Double acting or single acting with spring return. 5. Scotch Yoke principle gives high torque in the end positions. 6. 30% pre-tensioned springs to storage power for safety. 7. Mounting kits for all types of quarter turn valves. 8. Housing in anodized aluminum. 9. Precise control, smooth travel in the end positions 10. Housing in anodized aluminum. 11. Precise control, smooth travel in the end positions. 12. High reliability, long life 13. High efficiency, low air consumption. 14. Temperature range -25°C to +90°C. 15. 5,00,000 Cycles POD.

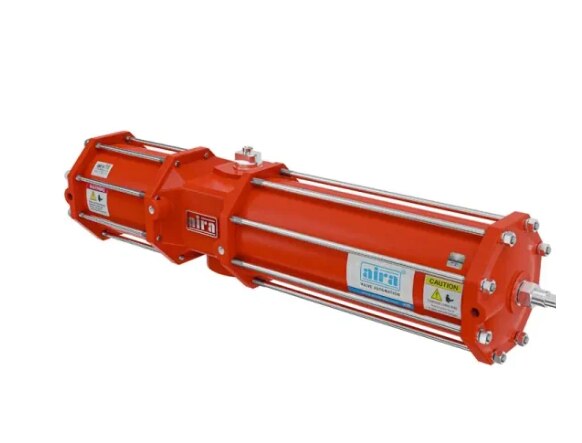

Size Range SYS-265 To SYS-88 Temperature Range -20°C To 90°C Pressure Class 35 To 150 PSI Body Material Aluminium Alloy - 6061-T6 Seals Material Nitrille Bolts Material Stainless Steel Air Supply Filtered, Dry or Lubricated Features & Benefits 1. For On-Off and modulating. 2. Compact design. 3. Connections according to international standards. 4. Double acting or single acting with spring return. 5. Scotch Yoke principle gives high torque in the end positions. 6. 30% pre-tensioned springs to storage power for safety. 7. Mounting kits for all types of quarter turn valves. 8. Housing in anodized aluminum. 9. Precise control, smooth travel in the end positions 10. Housing in anodized aluminum. 11. Precise control, smooth travel in the end positions. 12. High reliability, long life. 13. High efficiency, low air consumption. 14. Temperature range -20°C to +90°C. 15. 5,00,000 Cycles POD.

Specification & Standard Size Range Say-14 To Say-60 Temperature Range -20°C To 90°C Working Pressure 4 To 7 Bar Model OJS - 288 Body S.G.Iron Yoke Shaft EN8 Seals NBR Mounting PCD ISO 5211 Mounting Standard Body Materials Aluminium - Extruded Shaft Material EN8 Piston Material Aluminium Application Operating For Valve Discription 1 – Travel adjustment ±8° for clock wise and counter-clock wise strokes. 2 – Nitrile rubber piston O-rings offer excellent sealing and wear. Optional low and high temperature seals and lube are available. 3 – PTFE Guide Band supports piston while providing smooth operation and extended life. 4 – Extra large, strong piston rod for long life and torque transmission. 5 – Namur accessory mounting pads permit mounting standardization of limit switches, positioners etc. 6 – Ductile iron center body. 7 – Modular design allows for installing power groups and spring cartridges so that actuators may be set up for different air pressures and for Fail Clockwise and Fail Counter-clockwise. 8 – Rugged heavy duty steel pressure cylinders chrome plated for long wear and corrosion resistance. 9 – Safe, welded spring cartridges with numerous options for a broad range of air pressure conditions. 10 – Alloy Steel, corrosion resistant and heat treated springs designed and manufactured for long high cycle life. 11 – Steel slide block, bronze slide bearings to minimize friction and provide long cycle life Visual position indicator. 12 – Carbon steel Scotch Yoke mechanism available in symmetric form. 13 – Totally enclosed weatherproof central body.

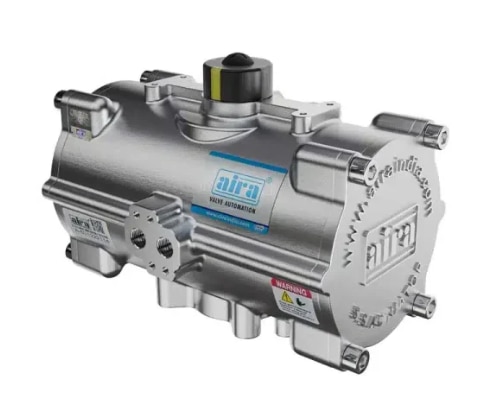

Specification & Standard Size Range Dot-45 To DOT-315 Operating Temperature Upto 150°C Working Pressure 4 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting Body IC CF8/ CF8M Caps And Rack IC CF8/ CF8M Pinion S.S.304/ S.S.316 Seals Buna - N/ Viton Air Pressure Normal Air Supply Pressure: 4KG/CM², Air Supply Pressure: 8KG/CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 90° - Quarter Turn Torque 0 To 3815 NM Mounting PCD ISO 5211 Body Materials S.S - 304/ S.S - 316 Piston Materials 304/ 316 Application Operating For Valve Discription 1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry. 2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now. 3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations. 4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel.

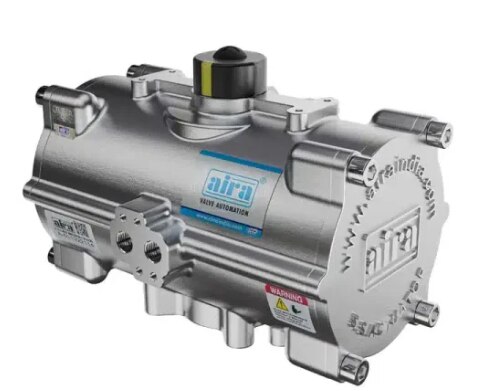

Specification & Standard Size Range Dot-45 To DOT-315 Temperature Range Upto 150°C Working Pressure 4 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting/ Single Acting Body IC CF8/ CF8M Caps And Rack IC CF8/ CF8M Pinion S.S.304/ S.S.316 Seals Buna - N/ Viton Air Pressure Normal Air Supply Pressure: 4KG/ CM², Air Supply Pressure: 8KG/CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 90° – Quarter Turn Torque 0 To 1461 - NM Mounting PCD ISO 5211 Body Material S.S - 304/ S.S - 316 Piston Material 304/ 316 Application Operating For Valve Discription 1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry. 2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now. 3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations. 4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel. We use only high grade quality materials in making our products. We use IC CF8 or CF8M casting material for actuator bodies and caps & racks. For pinions, we use AISI S.S. 304 or S.S. 316 and the seals are available in Buna-N and Viton. We tested each actuator before delivery to ensure the quality of the product. The ATEX, SIL-3, and CE-certified rotary actuator required dry or lubricated compressed air to operate. It requires 2~8 Bar air supply pressure for double acting and spring return. The standard operating temperature -20°C to 80°C with NBR ‘O’ ring and for high temperature Viton ‘O’ ring, it can sustain -15°C to 150°C temperature. For low temperature -35°C to 80°C is also available with a Silicon ‘O’ ring. It is recommended that periodic checks be performed to make sure that all fasteners remain tight. The actuator is supplied ready-lubricated. No further lubrication is required. On spring return actuators, spring fatigue may set in requiring the replacement of the spring. Spring should always be replaced in full sets. Under certain working conditions like Heavy Duty, non-compatible operating media, or abnormal operating conditions, internal seals should be checked periodically and replaced when necessary. Advantages of Stainless Steel Pneumatic Actuator The most important advantage of stainless steel actuators is that they can be placed in a corrosive atmosphere. It has the highest levels of corrosion protection. In comparison with others, stainless steel pneumatic actuators have a long life cycle. Best suitable for outdoor media and the seashore area. As we have a fully in-house inventory, and we use quality raw materials, hence we are the best pneumatic actuator manufacturer for high performance.

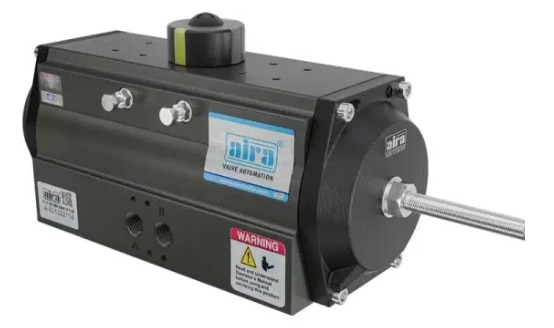

Specification & Standard Size Range ARA-50 To ARA-210 Temperature Range -20°C TO 90°C Working Pressure 4 To 8 Bar Method Of Transmission Double Acting Adjustable Travel Stopper Actuation Double Acting Body Extruded Aluminium Hard Anodized Caps And Rack Aluminium Pressure Die Cast Rotation 0 To 90° Adjustable Mounting PCD ISO 5211 Mounting Body Material Aluminium Piston Material Aluminium / WCB Application Operating For Valve Discriptions 1. Hard Anodized Barrel / Body to Protect from Hazardous atmosphere & corrosion, which enhance life of actuator. 2. Mounting Standard Pinion Top (As Per Namur Standard) The pinion (shaft) top drilled and slotted for easy assembling of switch, positioners and other accessories. 3. Adjusting Bolt Adjusting Bolts for 0 – 90° ± 5% Over Travel. 4. ISO – 5211 Standard Mounting for Valve (An International Standard) Double bottom drilling for actuator to valve Assembling & centering. Designed for strength and easy mounting or interchangeability 5. ISO – 5211 Standard Pinion Bottom (An International Standard) Bottom of the pinion (Shaft) as female key, double square-hole for assembling on valves with square key stem and in line or turned to 45O. Designed for strength and sure-fix with stem. 6. Sliding Skates The innovation for replaceable sliding skates, between Pistons (Racks) and internal bore surface of the Actuator, just to avoid metal contact, which enhances the Actuator life. 7. Compact Design “aira” Actuators are designed as compact double acting which offers high torque values. Internal sliding surface, machined and anodized for minimum friction and long life of actuator

Size Range SAY-14 To SAY-70 Temperature Range -20°C To 90°C Working Pressure 4 To 7 Bar Model OJS - 288 Body S.G.Iron Yoke Shaft EN8 Seals NBR Mounting PCD ISO 5211 Mounting Standard Body Material Aluminium - Extruded Shaft Material EN8 Piston Material Aluminium Application Operating For Valve Discription 1 – Travel adjustment ±8° for clock wise and counter-clock wise strokes. 2 – Nitrile rubber piston O-rings offer excellent sealing and wear. Optional low and high temperature seals and lube are available. 3 – PTFE Guide Band supports piston while providing smooth operation and extended life. 4 – Extra large, strong piston rod for long life and torque transmission. 5 – Namur accessory mounting pads permit mounting standardization of limit switches, positioners etc. 6 – Ductile iron center body. 7 – Modular design allows for installing power groups and spring cartridges so that actuators may be set up for different air pressures and for Fail Clockwise and Fail Counter-clockwise. 8 – Rugged heavy duty steel pressure cylinders chrome plated for long wear and corrosion resistance. 9 – Safe, welded spring cartridges with numerous options for a broad range of air pressure conditions. 10 – Alloy Steel, corrosion resistant and heat treated springs designed and manufactured for long high cycle life. 11 – Steel slide block, bronze slide bearings to minimize friction and provide long cycle life Visual position indicator. 12 – Carbon steel Scotch Yoke mechanism available in symmetric form. 13 – Totally enclosed weatherproof central body

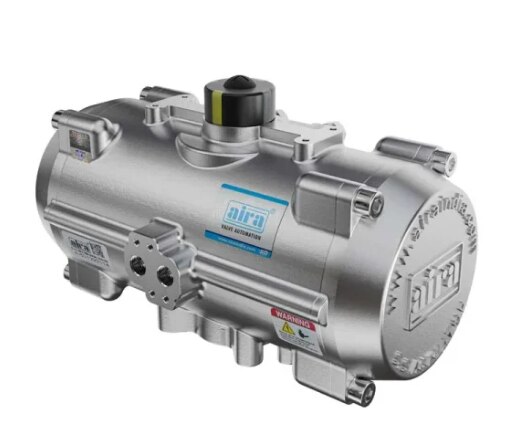

Operating Temperature Upto 150°C Working Pressure 4 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting Body IC CF8/ CF8M Caps And Rack IC CF8/ CF8M Pinion S.S.304/ S.S.316 Seals Buna - N/ Viton Air Pressure Normal Air Supply Pressure: 4KG/CM², Air Supply Pressure: 8KG/CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 90° - Quarter Turn Torque 0 To 3815 NM Mounting PCD ISO 5211 Body Materials S.S - 304/ S.S - 316 Piston Materials 304/ 316 Application Operating For Valve 1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry. 2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now. 3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations. 4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel.

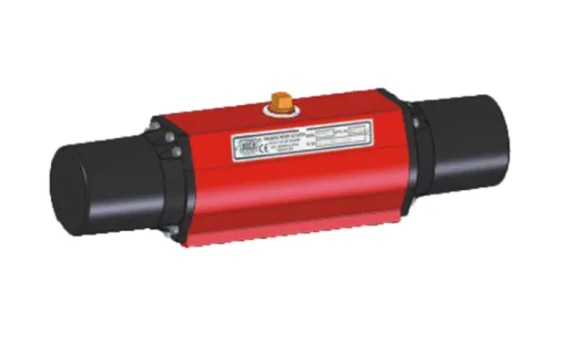

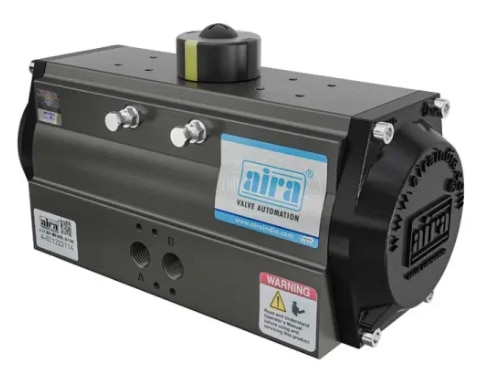

Temperature Range -20°C To 90°C Working Pressure 3 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting Body Extruded Aluminium Hard Anodized Caps And Rack Aluminium Pressure Die Cast Pinion EN 8 Seals Buna – N/ Viton Air pressure Normal Air Supply Pressure: 4KG/ CM², Air Supply Pressure: 8KG/ CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 90° Rotation Torque 0 To 8546 NM Mounting PCD ISO 5211 Mounting Standard Body Material Aluminium - Extruded Piston Material Aluminium Applications Operating For Valve 1 – Hard Anodized Barrel / Body to Protect from Hazardous atmosphere & corrosion, which enhance life of actuator. 2 – Mounting Standard Pinion Top (As Per Namur Standard) The pinion (shaft) top drilled and slotted for easy assembling of switch, positioners and other accessories. 3 – Adjusting Bolt Adjusting Bolts for 0° – 90° ± 5% Over Travel. 4 – ISO – 5211 Standard Mounting for Valve (An International Standard) Double bottom drilling for actuator to valve Assembling & centering. Designed for strength and easy mounting or interchangeability. 5 – ISO – 5211 Standard Pinion Bottom (An International Standard) Bottom of the pinion (Shaft) as female key, double square-hole for assembling on valves with square key stem and in line or turned to 45°. Designed for strength and sure-fix with stem. 6 – Sliding Skates The innovation for replaceable sliding skates, between Pistons (Racks) and internal bore surface of the Actuator, just to avoid metal contact, which enhances the Actuator life. 7 – Compact Design “aira” Actuators are designed as compact double acting which offers high torque values. Internal sliding surface, machined and anodized for minimum friction and long life of actuator. This pneumatic double-acting actuator requires normal air pressure from 4Kg/cm² (alt+0178 for ²) to a maximum 8Kg/cm² air supply. With this air supply, it can generate up to 13673 NM torque. Mechanism of Double Acting Pneumatic Actuator With the help of piston-connected racks, the center rod connected pinion rotates on its axis. When the pressurized air enters the chamber from port – 1, the piston pushes forward and the connected rack rotates the central pinion. To get the earlier position, pneumatic air enters from port -2 and pushes back the piston to its earliest position. Hence the piston-connected rack moves backward and also rotates the pinion. In rack & pinion transmitted double acting pneumatic actuators do not use springs like single-acting pneumatic actuators. The double-acting actuators required air supply twice to complete one cycle. As a result, these actuators provide full control over the connected valve. Uses of Double Acting Actuator The Double Acting Pneumatic Actuators provide 90° and 180° Rotation. These actuators are very friendly and widely used to operate quarter-turn valves. Where huge pressure is required to open or close the flow line for a long time, these actuators are ideal for that. To control flammable gas pipelines or refineries remotely, these actuators are the best fit as they provide spark-free transmission.

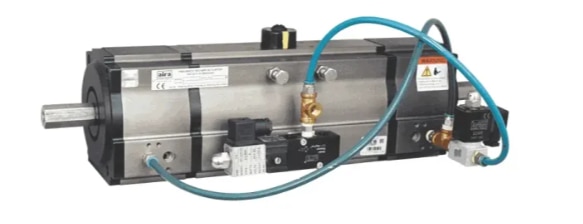

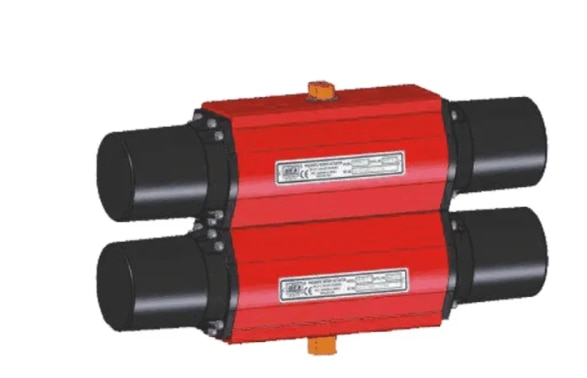

Size Range ARA-55D To 210D Temperature Range -20°C To 90°C Body Material Extruded Aluminium Hard Anodized Air Pressure Normal Air Supply Pressure: 4KG/CM², AIR SUPPLY PRESSURE: 8KG/CM² MAX Rotation 90° – Quarter Turn Working Pressure 35 To 150 PSI Seals Material BUNA – N Caps And Rack Aluminium Pressure Die Cast Shaft EN8 Air Supply Filtered, Dry Or Lubricated 1. . Actuator is suitable for coarse – fine adjustment, typically forbatching operations or processes. 2. The Actuator has to be Double Acting. 3. The repeatability is 100% since stopping is by mechanicalstoppers. It is suitable for application calling for the precise fine-coarse adjustment like liquid filling system. 4. The Actuator can be switched to one, position from any otherposition very easily with the solenoid control. The 3rd positionis achieved by the mechanical stopping of the piston movement,in the return stroke by pneumatic stopper pistons. 5. The Intermediate position is present at 20% opening. Theopening can be adjusted as required by the set screw. This is field adjustable. 6. Actuator as a standard, works in reverse action, as opposed toconventional configuration i.e. piston inward stroke opens thevalve, and piston outward stroke closes the valve. 7. The End Stops (+/- 5°) are provided on the closing and openingside of the Actuator for setting valve closing precisely. 8. 5,00,000 Cycles POD.
