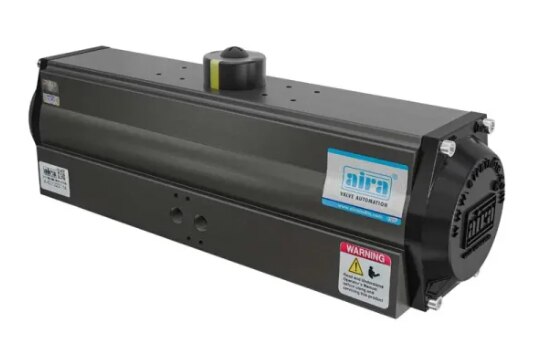

Size Range ARA-328 To ARA-1108 Temperature Range -20°C TO 90°C Working Pressure 3 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting Body Extruded Aluminium Hard Anodized Caps And Rack Aluminium Pressure Die Cast Pinion EN 8 Seals Nitrile Air Pressure Normal Air Supply Pressure: 3KG/CM², Air Supply Pressure: 8KG/CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 180° Rotation Torque 0 To 140 NM Mounting PCD As Per ISO 5211 Mounting Standard Piston Material Aluminium Application Operating For Valve 1 – Suitable typically for 3 way vales, requiring ON – OFF operation. It is available in both double acting versions. 2 – The 180° actuator can provide center off for the 3 way ball valve, bottom entry by choosing the option,of 3 position. 3 – The end stop adjustment is provided for opening and closing direction as a standard. 4 – Actuator mounting is as per ISO 5211 & Accessories to Namur Solenoid Valve.
