Description

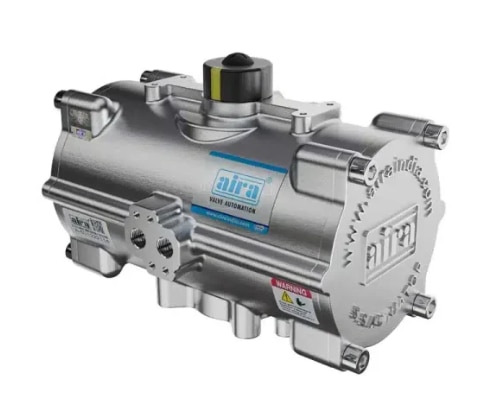

Specification & Standard Size Range Dot-45 To DOT-315 Operating Temperature Upto 150°C Working Pressure 4 To 8 Bar Method Of Transmission Rack And Pinion Type Actuation Double Acting Body IC CF8/ CF8M Caps And Rack IC CF8/ CF8M Pinion S.S.304/ S.S.316 Seals Buna - N/ Viton Air Pressure Normal Air Supply Pressure: 4KG/CM², Air Supply Pressure: 8KG/CM² Max Actuator Design ISO 5211 (Actuator Can Be Quickly And Easily Mounting) Rotation 90° - Quarter Turn Torque 0 To 3815 NM Mounting PCD ISO 5211 Body Materials S.S - 304/ S.S - 316 Piston Materials 304/ 316 Application Operating For Valve Discription 1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry. 2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now. 3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations. 4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel.
