control valve aira

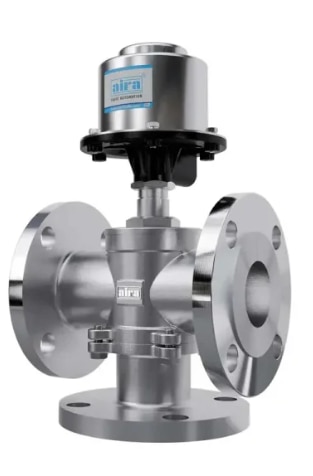

Size Range 15MM To 100MM Tempreature Range PTFE 180°C / CFT 220° Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Aprroved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Type Mixing & Diverting Valve. 2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision. 3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions. 4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability. 5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control. 6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance. 7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

Size Range 15MM To 65MM Tempreature Range PTFE 180°C / CFT 220° Pressurre Class Upto 20 Bar Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Aprroved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B 16.104 - 1976 Teflon Seating Class IV For Other Soft Seating Class VI Drop Tight / Bubble Tight Applications Stem Oil / Gas / Water Features & Benefits 1 – Type Mixing & Diverting Valve. 2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision. 3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions. 4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability. 5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control. 6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance. 7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

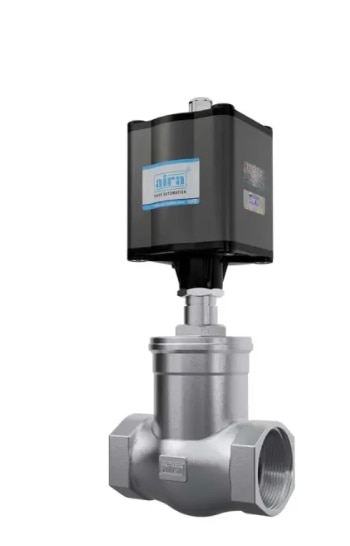

Size Range 15MM To 50MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Glob Body Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Globe Valve ( On/Off Control ). 2 – Provides Precise Control Of Fluid Flow With On/Off Functionality. 3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop. 4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control. 5 – Made From High-Quality Materials For Durability And Long Service Life. 6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.

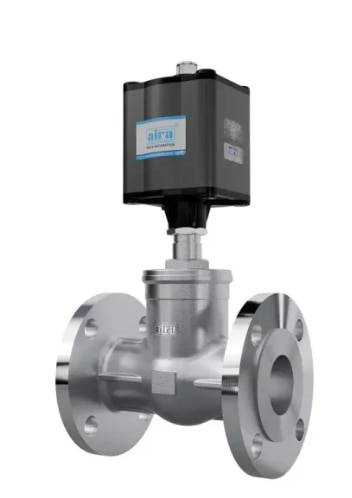

Size Range 15MM To 100MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Glob Body Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Globe Valve ( On/Off Control ). 2 – Provides Precise Control Of Fluid Flow With On/Off Functionality. 3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop. 4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control. 5 – Made From High-Quality Materials For Durability And Long Service Life. 6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.

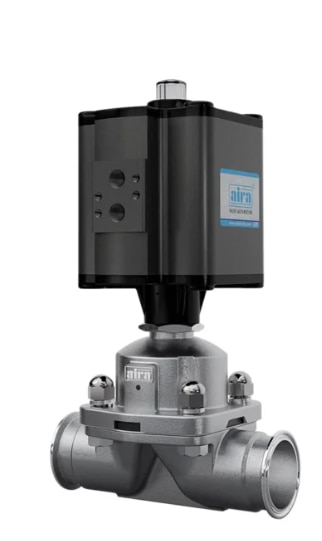

Size Range 1/2“ To 4” Temprature Range Upto 80°C Pressure Class Upto 5 Kg/Cm² End Connection TC End Seals Material Rubber / Teflon Features & Benefits 1 – Double Acting: Provides both opening and closing functions for precise control. 2 – Diaphragm Mechanism: Uses a diaphragm for smooth and reliable operation. 3 – Pneumatic Operation: Operated by compressed air for efficient control. 4 – Durable Construction: Made from high-quality materials for long-term performance. 5 – Compact Design: Space-saving and easy to integrate into various systems.

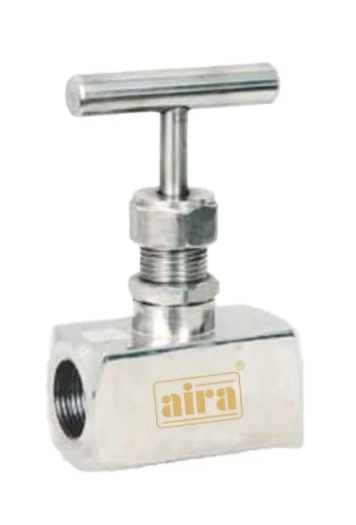

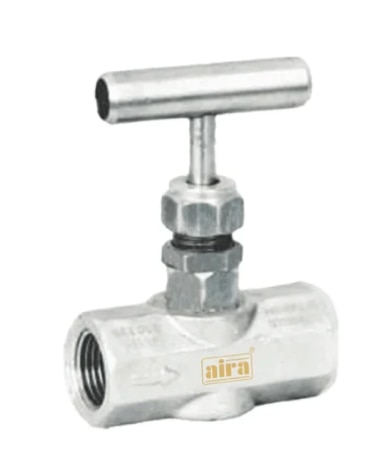

Size Range 1/4“ to 2” Screwed Temperature Range 200 °C Working Pressure 350 Kg/Cm² (5000 PSI) Body IC CF8 / CF8M Bonnet S.S. 304 / S.S. 316 Leakage Bubble Tight End Connection Screwed End BSP (NPT Connection On Request). Features & Benefits The aira Medium Pressure Needle Valve is designed to offer precise flow control in medium-pressure applications. 1 – Accurate Flow Regulation: Equipped with a finely threaded needle for precise adjustment, ensuring exact control over fluid flow rates. 2 – Robust Construction: Made from high-quality materials such as stainless steel or alloy steel, providing durability, strength, and resistance to medium pressure conditions. 3 – Leak-Proof Design: Features high-quality seals and precision threads that ensure leak-free operation and maintain system integrity. 4 – Versatile Applications: Suitable for a range of medium-pressure environments, including chemical processing, water treatment, and manufacturing industries. 5 – Smooth Operation: Provides consistent and smooth operation, allowing for reliable and stable flow control in various processes. 6 – Compact and Efficient: Designed with a compact profile for ease of installation in tight spaces without compromising on performance. 7 – Durable Sealing: Incorporates durable sealing materials to withstand pressure fluctuations and ensure long-term reliability.

Size Range 1/4“ To 2” Screwed Temperature Range 360 °C Working Pressure 700 Kg/Cm² (10,000 PSI) Body Forged S.S. 304 / 316 Bonnet S.S. 304 / S.S. 316 Leakage Bubble Tight End Connection Screwed End BSP (NPT Connection On Request). Features & Benefits The aira’s High Pressure Needle Valve is engineered for precise flow control in high-pressure environments. 1 – Precise Flow Control: Equipped with a finely threaded needle that allows for accurate adjustments, ensuring precise control of fluid flow rates even under high pressure. 2 – High-Pressure Durability: Constructed from premium materials such as high-grade stainless steel or alloy steel, designed to withstand and perform reliably under high-pressure conditions. 3 – Leak-Proof Operation: Features robust seals and precision-engineered threads to provide a leak-tight seal, maintaining system integrity and preventing fluid loss. 4 – Versatile Applications: Ideal for use in demanding high-pressure applications across various industries, including oil and gas, chemical processing, and high-pressure hydraulic systems. 5 – Smooth and Reliable: Designed to operate smoothly and consistently, providing reliable flow regulation and stability in high-pressure settings. 6 – Compact and Robust: Its compact design allows for installation in tight spaces while maintaining strength and durability to handle extreme pressures. 7 – Enhanced Sealing: Utilizes advanced sealing technology to manage high-pressure fluctuations and ensure long-term performance and reliability.

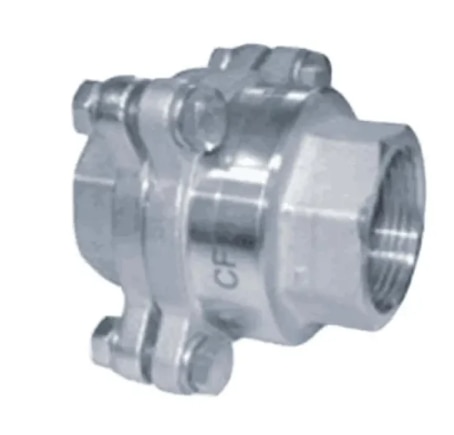

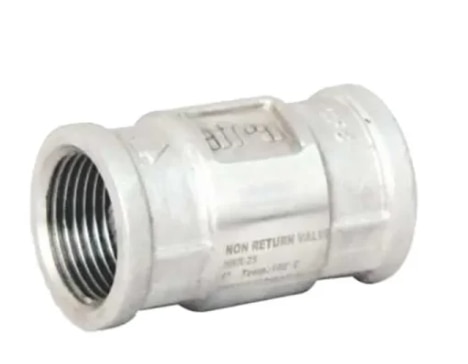

Size Range 1/2“ To 2” Screwed Temprature Range 100°C Working Pressure 3000 PSI Body IC CF8 / CF8M Leakage Bubble Tight “O” Ring Viton Media Air / Water / Oil & Gas End Connection Screwed (F) To BSP (NPT On Request) Features & Benefits 1 – High Pressure Tolerance: Designed to withstand high-pressure environments, making it suitable for demanding applications in industries such as automotive, aerospace, and industrial machinery. 2 – Universal Design: The valve’s universal design allows for versatile installation across various systems and applications, providing flexibility in its use. 3 – Non-Return Functionality: Prevents backflow of fluids, ensuring that the flow direction is maintained and system integrity is preserved. This feature is crucial for preventing contamination and protecting equipment. 4 – Durable Construction: Typically made from high-quality materials such as stainless steel or robust alloys, ensuring long-lasting performance and resistance to wear, corrosion, and high-pressure conditions. 5 – Precision Engineering: Engineered for accurate control and reliability, with tight tolerances to ensure consistent performance under pressure. 6 – Easy Maintenance: Designed for easy installation and maintenance, with straightforward servicing procedures to minimize downtime. 7 – Compact Size: Its compact and efficient design ensures it can fit into tight spaces while still delivering high performance. 8 – Temperature Resistance: Capable of operating effectively across a range of temperatures, making it suitable for diverse environmental conditions.

Temperature Range Max. 300°C Working Pressure PN20, PN40 Body CF8 / CF8M Disc. S.S. 304 / 316 Seat Metal To Metal (PTFE / EPDM On Request) End Connection Screwed End / Wafer type / Lug type. Features & Benefits “aira” Disc Check Valve (Non-Return Valve) 1 – Prevents Backflow: Ensures one-way fluid flow to prevent reverse flow. 2 – Disc Mechanism: Utilizes a disc for reliable sealing and performance. 3 – Compact Design: Space-saving and easy to install in various systems. 4 – Durable Construction: Made from high-quality materials for extended lifespan. 5 – Versatile: Suitable for a wide range of industrial and commercial applications.

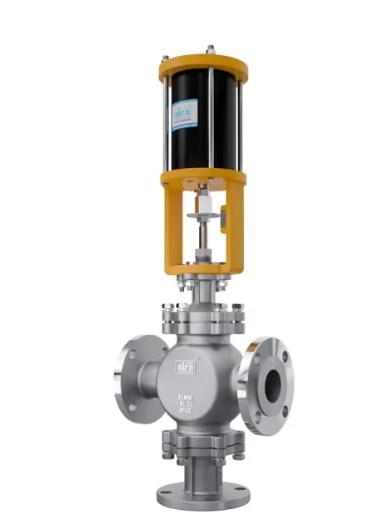

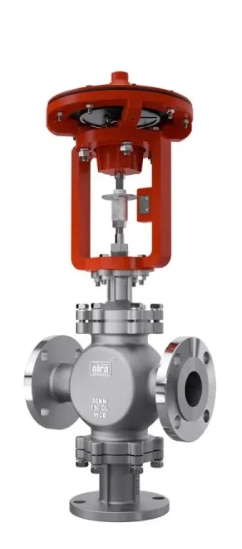

Size Range 15MM To 100MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class - 6 Body Style Soft Flange Drilling 150#, 300# Certification IBR Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection ASME B16.5 Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage Class VI Applications Steam / Gas / Water & Air Features & Benefits 1 – Available in 2/2 and 3/2 way options. 2 – Pneumatic Cylinder Operated. 3 – Provides reliable control for directing airflow in pneumatic systems. 4 – Built for long-term use with robust construction. 5 – Allows precise control of the flow of compressed air, ideal for automation and machinery applications. 6 – Compact and efficient design for easy integration into various systems. 7 – Typically constructed from high-quality metals or durable polymers for enhanced performance.

Size Range 15MM To 150MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class Body Style Soft Flange Drilling 150#, 300# Certification IBR Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL VI for Soft Seating / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Excellent For On / Off Application. 2 – Long Lasting Diaphragm Material. 3 – Easy Maintenance. 4 – Economy Price. 5 – High Temperature 220 ºC.

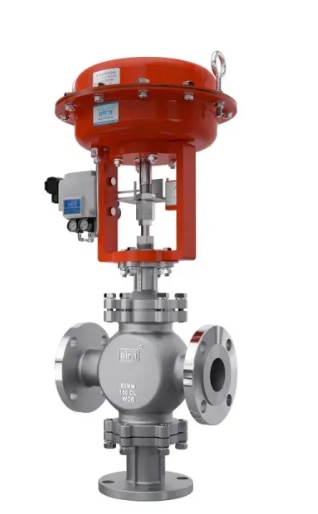

Size Range 15MM To 300MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class - 6 Body Style Globe Type Flange Drilling 150#, 300#, 600# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage V to VI / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.
