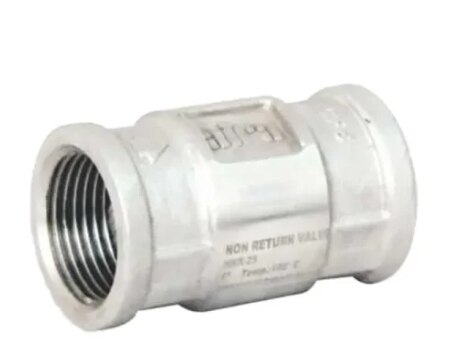

High Pressure Non Return Valve

Size Range

1/2“ To 2” Screwed

Temprature Range

100°C

Working Pressure

3000 PSI

Body

IC CF8 / CF8M

Leakage

Bubble Tight

“O” Ring

Viton

Media

Air / Water / Oil & Gas

End Connection

Screwed (F) To BSP (NPT On Request)

Features & Benefits

1 – High Pressure Tolerance: Designed to withstand high-pressure environments, making it suitable for demanding applications in industries such as automotive, aerospace, and industrial machinery.

2 – Universal Design: The valve’s universal design allows for versatile installation across various systems and applications, providing flexibility in its use.

3 – Non-Return Functionality: Prevents backflow of fluids, ensuring that the flow direction is maintained and system integrity is preserved. This feature is crucial for preventing contamination and protecting equipment.

4 – Durable Construction: Typically made from high-quality materials such as stainless steel or robust alloys, ensuring long-lasting performance and resistance to wear, corrosion, and high-pressure conditions.

5 – Precision Engineering: Engineered for accurate control and reliability, with tight tolerances to ensure consistent performance under pressure.

6 – Easy Maintenance: Designed for easy installation and maintenance, with straightforward servicing procedures to minimize downtime.

7 – Compact Size: Its compact and efficient design ensures it can fit into tight spaces while still delivering high performance.

8 – Temperature Resistance: Capable of operating effectively across a range of temperatures, making it suitable for diverse environmental conditions.
