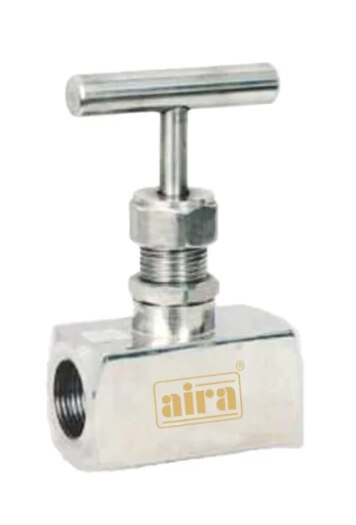

High Pressure Needle Valve

Size Range

1/4“ To 2” Screwed

Temperature Range

360 °C

Working Pressure

700 Kg/Cm² (10,000 PSI)

Body

Forged S.S. 304 / 316

Bonnet

S.S. 304 / S.S. 316

Leakage

Bubble Tight

End Connection

Screwed End BSP (NPT Connection On Request).

Features & Benefits

The aira’s High Pressure Needle Valve is engineered for precise flow control in high-pressure environments.

1 – Precise Flow Control: Equipped with a finely threaded needle that allows for accurate adjustments, ensuring precise control of fluid flow rates even under high pressure.

2 – High-Pressure Durability: Constructed from premium materials such as high-grade stainless steel or alloy steel, designed to withstand and perform reliably under high-pressure conditions.

3 – Leak-Proof Operation: Features robust seals and precision-engineered threads to provide a leak-tight seal, maintaining system integrity and preventing fluid loss.

4 – Versatile Applications: Ideal for use in demanding high-pressure applications across various industries, including oil and gas, chemical processing, and high-pressure hydraulic systems.

5 – Smooth and Reliable: Designed to operate smoothly and consistently, providing reliable flow regulation and stability in high-pressure settings.

6 – Compact and Robust: Its compact design allows for installation in tight spaces while maintaining strength and durability to handle extreme pressures.

7 – Enhanced Sealing: Utilizes advanced sealing technology to manage high-pressure fluctuations and ensure long-term performance and reliability.
