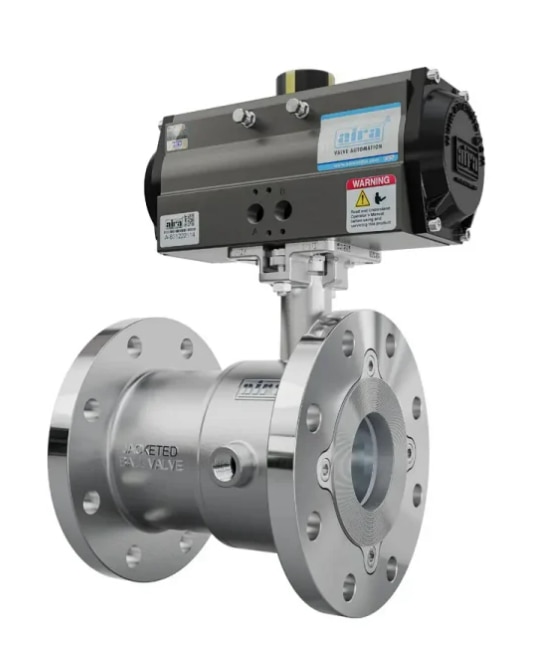

“aira” Offers Manual & Automation Operated Single Piece Design Full Bore Jacketed Floating Ball Valve. Jacketed Construction For Standard Bore Valves. The Jacketed Comes In Single Piece Construction Welded Together. The Jackets Of The Valves Can Be Rated For Heat Transfer Media Pressure Upto 10 Kg/cm². The Valve Can Be Used Sanitary Application Jacketed Ball Valves. Jacketed Ball Valve Designed For Using In The Several Condition Such As Applications Filter Dryer, Vaccum Dryer, Stirrer Vessel, Rector Other Vessel, Chemical, Pharmaceutical, Food, Cosmetic, Fluids, Emulsion, Syrup, Paints, Chocolate Etc… Specification & Standard Size Range 3/4“ To 6” Flanged 300# Temperature Range PTFE : Upto 180°C Pressure Class 300# Media Air/ Water/ Oil & Gas Body Material CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL Ball Material CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M Ball Type Hollow & Solid Stem Material Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel Seat Material PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
