Inspection & Testing
API 598 / ISO-5208 / BS EN 12266-1
Size Range
1/4“ To 2” Screwed 150#
Media
Air / Water / Oil & Gas
Ball Material
CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Leakage Class
ISO 5208 Class VI / FCI - 70 - 2 / ASME B 16, 16. 104 (BUBBLE TIGHT SHUTOFF)
End Connection
ISO 7-1 FOR BSPT / BSP / ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD
Tempreature Range
PTFE : Upto 180°C / RPTFE / TFM : 220°

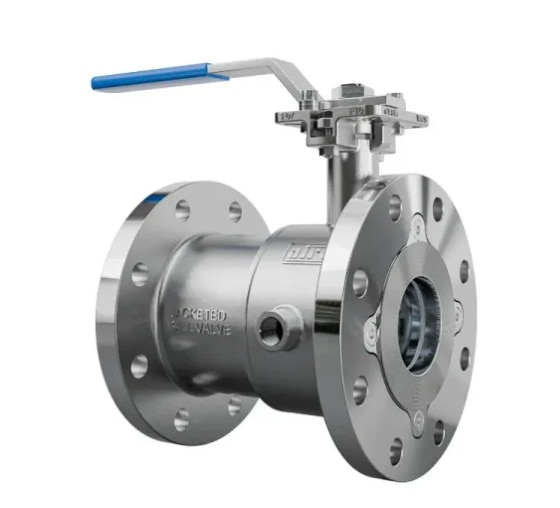

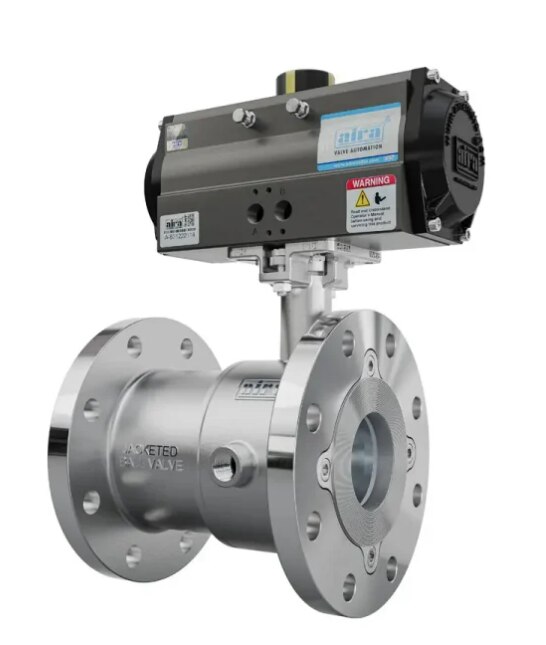

“aira” Offers Manual & Automation Operated Single Piece Design Full Bore Jacketed Floating Ball Valve. Jacketed Construction For Standard Bore Valves. The Jacketed Comes In Single Piece Construction Welded Together. The Jackets Of The Valves Can Be Rated For Heat Transfer Media Pressure Upto 10 Kg/cm². The Valve Can Be Used Sanitary Application Jacketed Ball Valves. Jacketed Ball Valve Designed For Using In The Several Condition Such As Applications Filter Dryer, Vaccum Dryer, Stirrer Vessel, Rector Other Vessel, Chemical, Pharmaceutical, Food, Cosmetic, Fluids, Emulsion, Syrup, Paints, Chocolate Etc…
Specification & Standard
Size Range
1/2“ To 12” Flanged
Tempreature Range
PTFE : Upto 180°C
Pressurre Class
150#
Media
Air/ Water/ Oil & Gas
Body Material
CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Ball Material
CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
“aira” Offers Manual & Automation Operated Single Piece Design Full Bore Jacketed Floating Ball Valve. Jacketed Construction For Standard Bore Valves. The Jacketed Comes In Single Piece Construction Welded Together. The Jackets Of The Valves Can Be Rated For Heat Transfer Media Pressure Upto 10 Kg/cm². The Valve Can Be Used Sanitary Application Jacketed Ball Valves. Jacketed Ball Valve Designed For Using In The Several Condition Such As Applications Filter Dryer, Vaccum Dryer, Stirrer Vessel, Rector Other Vessel, Chemical, Pharmaceutical, Food, Cosmetic, Fluids, Emulsion, Syrup, Paints, Chocolate Etc…
Specification & Standard
Size Range
3/4“ To 6” Flanged 300#
Temperature Range
PTFE : Upto 180°C
Pressure Class
300#
Media
Air/ Water/ Oil & Gas
Body Material
CAST IRON(CI),DUCTILE IRON(DI), S.G IRON(SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Ball Material
CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type
Hollow & Solid
Stem Material
Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel
Seat Material
PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
