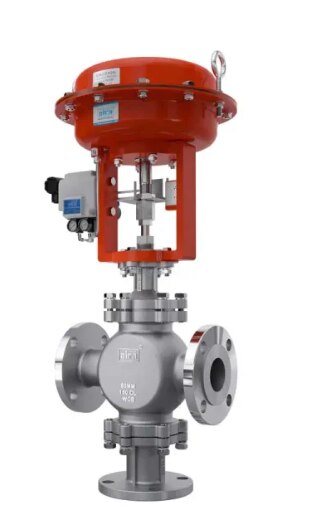

3-2 Way Low Temperature Control Valve Upto 220°C

Size Range

15MM To 300MM

Tempreature Range

Upto 220°C Max

Shutoff Rating

Tight Shut Off Leakage Class - 6

Body Style

Globe Type

Flange Drilling

150#, 300#, 600#

Certification

IBR & CE Approved

Body Materials

WCB / CF8 / CF8M

Stem Materials

S. S - 304 / S. S - 316

Seat Materials

PTFE / CFT / GFT

Plug Materials

S. S - 304 / S. S - 316

Design Standard

BS 6697

End Connection

Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request)

Testing Standard

FCI 70 - 2

Face To Face

ISA - 75.03, IEC 534 - 3

Leakage

V to VI / FCI 70 - 2

Applications

Steam / Gas / Water & Air

Features & Benefits

1 – Precise Regulation With High Flow Capacity.

2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions.

3 – In Line Repairable Design For Easy Maintenance.

4 – Tight Closure Even In Extreme Operating Conditions.

5 – Multi Action Type Actuator ( Direct / Reverse Acting ).

6 – Wide Range Of Actuators To Meet Different Application.
