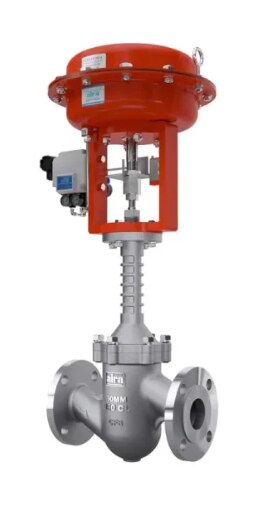

Size Range 15MM To 300MM Tempreature Range Upto 450°C Max Shutoff Rating Leakage Class - 4 Body Style Globe Type Flange Drilling 150#, 300#, 600# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials Metal to Metal Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL IV For Metal to Metal Seating / FCI 70 - 2 Applications Thermic - Oil / Gas / Water Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.
