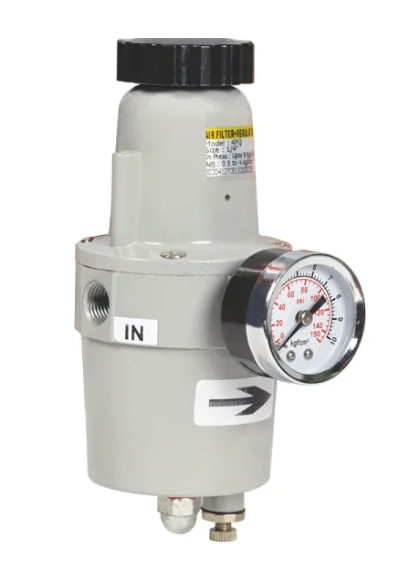

Size Range 1/4” Temperature Range -20°C ~ 120°C (High Temp.), -40°C ~ 120°C (Low Temp.) Working Pressure 0.5 To 9 BAR 1 – Maintain Desirable Pressure Level, Regardless Of Fluctuation Of Pressure Input 2 – Aluminium Body Increases Versatility Of The Product In Different Environments 3 – 5 Micron Filter Sorts Minuteness Particles In The Air 4 – Relief Function Is Available Which Discharge To Atmosphere If The Outlet Pressure Is Higher Than Setting Pressure

Size Range 1/4“, 3/8”, 1/2" Temperature Range Upto 150°C Working Pressure Upto 70 kg/cm² 1 – Easy Replacement Of Coil As Both AC And DC Type Use Same Enclosure. 2 – Can Test The Operation In Manual Switch Without Power Source. 3 – High Durability As Valve Body Is Pneumatic Pressure Operating Type. 4 – We Provide Flameproof Coil ip67. 5 – We Also Provide Weatherproof Coil ip65. 6 – Mounting In Any Type Of Position.

Size Range 1/2“ To 4” Temperature Range Upto 120°C Working Pressure -0.7 To 9 Bar 1 – 2/2 Way Design: Controls fluid flow with a two-port configuration, allowing for on/off operation. 2 – Screwed Connections: Features threaded fittings for easy and secure installation. 3 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to suit different automation needs. 4 – Automation Ready: Designed for automated systems, enabling precise and reliable control. 5 – Durable Construction: Made from high-quality materials for long-term reliability and resistance to wear and corrosion. 6 – Compact and Space-Efficient: Suitable for installations with space constraints while maintaining high performance. 7 – Versatile Fluid Handling: Compatible with a wide range of fluids including air, water, and chemicals. 8 – Low Maintenance: Built for minimal upkeep, reducing maintenance needs and operational costs. 9 – Quick and Reliable Switching: Ensures efficient operation with fast response times.

Size Range 3/8“ To 4” Screwed Temperature Range 180°C Max. ( High Temperature On Request ) Working Pressure 0 To 5 Bar Max. ( 0 to 6 Bar On Request ) 1 – 2/2 Way Configuration: Provides reliable on/off control with a two-port design for managing fluid flow. 2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to meet different operational requirements. 3 – Screwed Connections: Features threaded fittings for easy and secure installation. 4 – Automation Ready: Electrically actuated for precise and efficient automated control. 5 – Durable Construction: Built from high-quality materials like brass or stainless steel, ensuring longevity and resistance to corrosion. 6 – Compact and Robust: Designed for space efficiency while maintaining durability and performance in various environments. 7 – Versatile Fluid Compatibility: Suitable for a range of fluids, including air, water, and chemicals. 8 – Low Maintenance: Engineered to require minimal upkeep, reducing maintenance needs and operational costs. 9 – Fast and Reliable Switching: Offers quick response times for effective and dependable system control.

Size Range 3/8“ To 4” Flanged 150# Temperature Range 180°C Max. ( High Temperature On Request ) Working Pressure 0 To 5 Bar Max. (0 to 6 Bar On Request) 1 – 2/2 Way Design: Offers efficient on/off control with a two-port configuration for managing fluid flow. 2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to accommodate various automation needs. 3 – Flanged Connections: Features robust flanged fittings for secure and stable installation, especially suited for high-pressure applications. 4 – Automation Ready: Electrically actuated for precise and reliable automated control. 5 – Durable Construction: Constructed from high-quality materials such as stainless steel or brass, ensuring durability and resistance to corrosion and wear. 6 – Compact and Sturdy: Designed to fit in demanding environments while maintaining high performance. 7 – Versatile Fluid Compatibility: Capable of handling a broad range of fluids, including air, water, and chemicals. 8 – Low Maintenance: Requires minimal upkeep, reducing maintenance costs and downtime. 9 – Fast and Reliable Actuation: Provides quick and consistent switching for efficient system operation.

Size Range 1/4" Screwed Temperature Range Upto -5°C To 80°C max. Working Pressure 0 To 7 Bar

Product Details Model JHFRCLM Size 1/4“, 3/8”, 1/2“, 3/4”, 1" Body Aluminium Pressure Die Cast Seals NBR Pressure 10 Kg/cm² Temperature 50˚C Media Compressed Air Description The F + R + L Sets 3pc with Pressure Gauge (Model: JHFRCLM) are designed to provide optimal air filtration, control, and lubrication in pneumatic systems. These high-quality sets, available in 1/4″, 3/8″, 1/2″, 3/4″, and 1″, assure smooth operations and increase the life of your equipment. These sets are made in-house with high-quality raw materials and include a precise pressure gauge for convenient monitoring. Compatible with ISO VG32 oil for improved lubrication performance, making them a dependable solution for your industrial applications. For those seeking a simpler solution, the FR + L Sets 2pc With Pressure Gauge offers dependable performance at best price.

Product Details Model JHFRCLM Size 1/4“, 3/8”, 1/2“, 3/4”, 1" Body Aluminium Pressure Die Cast Seals NBR Pressure 10 Kg/cm² Temperature 50˚C Media Compressed Air Description In order to guarantee effective air filtration and lubrication in pneumatic systems, Airmax Pneumatics designed the FR + L Sets 2pc with Pressure Gauge. These sets, available in sizes 1/4″, 3/8″, 1/2″, 3/4″, and 1″, are manufactured of sturdy aluminum pressure die-cast for long-term performance. These FR + L sets are ideal for industrial applications as they can withstand temperatures up to 50˚C. Trusted for quality, Airmax Pneumatics manufactures and supplies these components for tuned pneumatic system operation. The F + R + L Sets 3pc With Pressure Gauge offers all the components you need if your application calls for a more complex combination.

Product Details Model JHFRC Size 1/4“, 3/8”, 1/2“, 3/4”, 1" Body Aluminium Pressure Die Cast Element 25 Micron Pressure 10 Kg/cm² Temperature 50˚C Media Compressed Air Description The F + R Combination with Pressure Gauge from Airmax is intended to provide optimal filtration and regulation for your pneumatic systems. With a 25-micron element, it provides clean air while maintaining steady pressure. This combination provides faster response times and maximum flow rates, making it suited for high-performance applications. Airmax Pneumatics manufacturers, supplies, and exports this robust solution, which improves the efficiency of your pneumatic systems. If you are looking for the whole Air FRL Set in medium range option then go through the link provided.

Product Details Model JHL Size 1/4“, 3/8”, 1/2“, 3/4”, 1" Body Aluminium Pressure Die Cast Seals NBR Pressure 10 Kg/cm² Temperature 50˚C Media Compressed Air Description Boost System Longevity with Quality Air Lubrication By properly lubricating pneumatic systems, the Pneumatic Air Lubricator improves performance and prolongs system life. Its NBR seals provide dependable sealing and prevent leaks, and it was designed in compliance with ISO 6301-1. Its oil distribution is effective and consistent because its lubrication is proportionate to flow. This lubricant is made in-house with premium raw materials, ensuring dependability and longevity. Airmax Pneumatics is a manufacturer and supplier of Pneumatic Air Lubricators in India. This lubricator is essential for businesses requiring smooth, maintenance-free operation of their pneumatic systems. The Premium Pneumatic Air Lubricator is designed for high-end applications requiring precision, whilst the Standard Pneumatic Air Lubricator provides reliable performance at a reasonable price.

Product Details Model JHR Size 1/4“, 3/8”, 1/2“, 3/4”, 1" Body Aluminium Pressure Die. Cast Seals NBR Pressure 10 Kg/cm² Temperature 50˚C Media Compressed Air Description Ideal for System Upgrades: Premium Air Regulator With our Air Regulator, you can ensure accurate airflow management. It is intended for best performance and life expectancy. This regulator is designed to meet ISO 6953-1 standards and includes a pressure gauge for reliable monitoring. Since 1992, it has been available for supply and export around the world, serving sectors that require constant and reliable air regulation. Whether you’re improving your system or starting over, this high-quality Air Regulator surpasses international regulations. While our Premium Series Air Regulator offers exceptional performance for demanding applications, you can also explore our Standard Series Air Regulator for a reliable, cost-effective solution for less intensive needs.

FRC1 series - Sizes : G1/4, 3/8, 1/2, 3/4, 1 Modular type Suitable for panel mounting Filter • Bronze filtering element • Separator and shield for efficient moisture separation Regulator • Diaphragm operated, relieving type • Pressure compensated by balanced poppet • Flow compensated in models FRC14, FRC15 and FRC17 for faster response • Non raising press to lock adjusting knob for locking at any set pressure Steel bowl guard, bayonet type on FRC14, FRC15 & FRC17 models and threaded type on FRC13 model Good flow and regulating characteristics

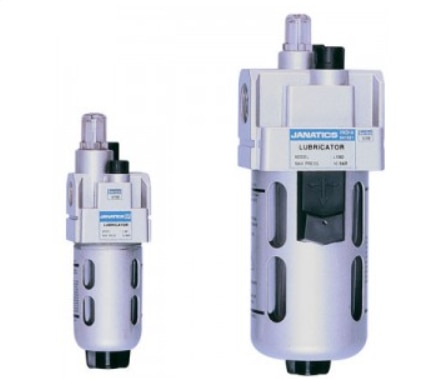

L1 series - Sizes : G1/4, G3/8, G1/2, G3/4, G1 Conform to ISO 6301-1 Suitable for Modular mounting Fog/Mist type Fine adjustment of lubrication Steel bowlguard, bayonet type on L14, L15 & L17 models and threaded type on L13 model Lubrication proportional to flow

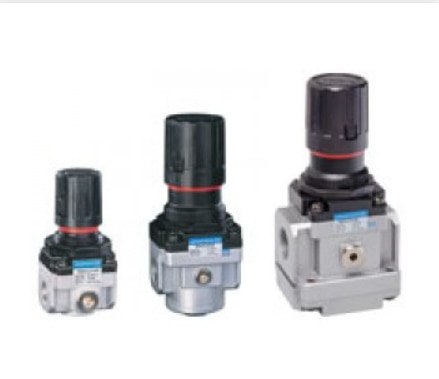

R1 series - Sizes : G1/4, G3/8, G1/2, 3/4, 1 Conform to ISO 6953 - 1 Suitable for panel and modular mountings Non raising Press to Lock adjusting knob for locking at any set pressure Diaphragm operated, relieving type Pressure compensated by balanced poppet Flow compensated in models R14, R15 and R17 (with venturi) for faster response Good flow and regulating characteristics

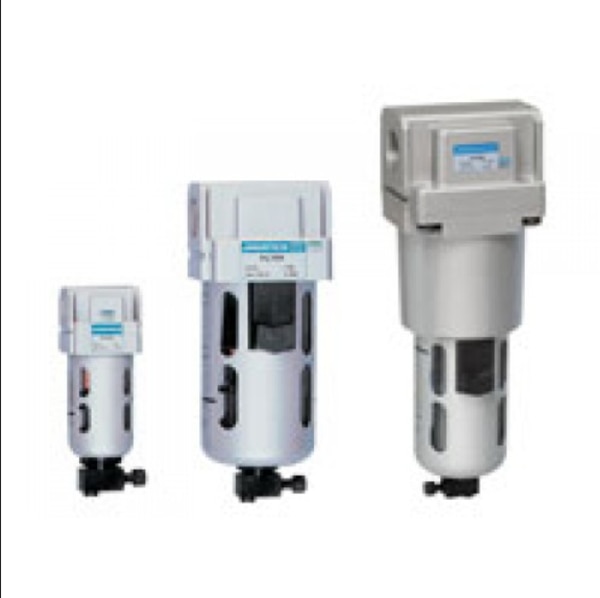

F1 series - Sizes : G1/4, 3/8, 1/2, 3/4, 1 Conforms to ISO 5782-1 Suitable for Modular mounting Steel bowl guard, bayonet type on F14, F15 & F17 models and threaded type on F13 model Press type Manual drain for easy operation Bronze filtering element Separator and shield for efficient moisture separation

Size Range 15MM To 65MM Tempreature Range PTFE 180°C / CFT 220° Pressurre Class Upto 20 Bar Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Aprroved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B 16.104 - 1976 Teflon Seating Class IV For Other Soft Seating Class VI Drop Tight / Bubble Tight Applications Stem Oil / Gas / Water Features & Benefits 1 – Type Mixing & Diverting Valve. 2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision. 3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions. 4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability. 5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control. 6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance. 7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

Size Range 15MM To 50MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Glob Body Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Globe Valve ( On/Off Control ). 2 – Provides Precise Control Of Fluid Flow With On/Off Functionality. 3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop. 4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control. 5 – Made From High-Quality Materials For Durability And Long Service Life. 6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.

Size Range 15MM To 100MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Glob Body Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Globe Valve ( On/Off Control ). 2 – Provides Precise Control Of Fluid Flow With On/Off Functionality. 3 – Features A Globe-Shaped Body For Effective Flow Regulation And Minimal Pressure Drop. 4 – Ideal For Applications Requiring Reliable And Accurate Shut-Off Or Flow Control. 5 – Made From High-Quality Materials For Durability And Long Service Life. 6 – Suitable For Various Industrial Processes And Systems Where Control And Isolation Of Flow Are Required.

Size Range 1/2“ To 4” Temprature Range Upto 80°C Pressure Class Upto 5 Kg/Cm² End Connection TC End Seals Material Rubber / Teflon Features & Benefits 1 – Double Acting: Provides both opening and closing functions for precise control. 2 – Diaphragm Mechanism: Uses a diaphragm for smooth and reliable operation. 3 – Pneumatic Operation: Operated by compressed air for efficient control. 4 – Durable Construction: Made from high-quality materials for long-term performance. 5 – Compact Design: Space-saving and easy to integrate into various systems.

Size Range 1/4“ To 2” Screwed Temperature Range 360 °C Working Pressure 700 Kg/Cm² (10,000 PSI) Body Forged S.S. 304 / 316 Bonnet S.S. 304 / S.S. 316 Leakage Bubble Tight End Connection Screwed End BSP (NPT Connection On Request). Features & Benefits The aira’s High Pressure Needle Valve is engineered for precise flow control in high-pressure environments. 1 – Precise Flow Control: Equipped with a finely threaded needle that allows for accurate adjustments, ensuring precise control of fluid flow rates even under high pressure. 2 – High-Pressure Durability: Constructed from premium materials such as high-grade stainless steel or alloy steel, designed to withstand and perform reliably under high-pressure conditions. 3 – Leak-Proof Operation: Features robust seals and precision-engineered threads to provide a leak-tight seal, maintaining system integrity and preventing fluid loss. 4 – Versatile Applications: Ideal for use in demanding high-pressure applications across various industries, including oil and gas, chemical processing, and high-pressure hydraulic systems. 5 – Smooth and Reliable: Designed to operate smoothly and consistently, providing reliable flow regulation and stability in high-pressure settings. 6 – Compact and Robust: Its compact design allows for installation in tight spaces while maintaining strength and durability to handle extreme pressures. 7 – Enhanced Sealing: Utilizes advanced sealing technology to manage high-pressure fluctuations and ensure long-term performance and reliability.

Size Range 1/2“ To 2” Screwed Temprature Range 100°C Working Pressure 3000 PSI Body IC CF8 / CF8M Leakage Bubble Tight “O” Ring Viton Media Air / Water / Oil & Gas End Connection Screwed (F) To BSP (NPT On Request) Features & Benefits 1 – High Pressure Tolerance: Designed to withstand high-pressure environments, making it suitable for demanding applications in industries such as automotive, aerospace, and industrial machinery. 2 – Universal Design: The valve’s universal design allows for versatile installation across various systems and applications, providing flexibility in its use. 3 – Non-Return Functionality: Prevents backflow of fluids, ensuring that the flow direction is maintained and system integrity is preserved. This feature is crucial for preventing contamination and protecting equipment. 4 – Durable Construction: Typically made from high-quality materials such as stainless steel or robust alloys, ensuring long-lasting performance and resistance to wear, corrosion, and high-pressure conditions. 5 – Precision Engineering: Engineered for accurate control and reliability, with tight tolerances to ensure consistent performance under pressure. 6 – Easy Maintenance: Designed for easy installation and maintenance, with straightforward servicing procedures to minimize downtime. 7 – Compact Size: Its compact and efficient design ensures it can fit into tight spaces while still delivering high performance. 8 – Temperature Resistance: Capable of operating effectively across a range of temperatures, making it suitable for diverse environmental conditions.

Temperature Range Max. 300°C Working Pressure PN20, PN40 Body CF8 / CF8M Disc. S.S. 304 / 316 Seat Metal To Metal (PTFE / EPDM On Request) End Connection Screwed End / Wafer type / Lug type. Features & Benefits “aira” Disc Check Valve (Non-Return Valve) 1 – Prevents Backflow: Ensures one-way fluid flow to prevent reverse flow. 2 – Disc Mechanism: Utilizes a disc for reliable sealing and performance. 3 – Compact Design: Space-saving and easy to install in various systems. 4 – Durable Construction: Made from high-quality materials for extended lifespan. 5 – Versatile: Suitable for a wide range of industrial and commercial applications.

Size Range 15MM To 150MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class Body Style Soft Flange Drilling 150#, 300# Certification IBR Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL VI for Soft Seating / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Excellent For On / Off Application. 2 – Long Lasting Diaphragm Material. 3 – Easy Maintenance. 4 – Economy Price. 5 – High Temperature 220 ºC.

Size Range 15MM To 300MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class - 6 Body Style Globe Type Flange Drilling 150#, 300#, 600# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage V to VI / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.

Size Range 15MM To 300MM Tempreature Range Upto 450°C Max Shutoff Rating Leakage Class - 4 Body Style Globe Type Flange Drilling 150#, 300# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials Metal to Metal Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL IV For Metal to Metal Seating / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.

Size Range 15MM To 80MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316 Stem Materials PTFE Seat Materials GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits Size Range 15MM To 80MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316 Stem Materials PTFE Seat Materials GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Light Weight Actuator. 2 – Suitable For High Cycle Duties. 3 – Good Control Characteristics. 4 – Available With Electro Pneumatic Positioners. 5 – Namur Mounting Pad For Easy Mounting Of Solenoid Valve. 6 – Double Acting / Single Acting Valve ( NO / NC ). 7 – Position Indicators Standard In All Valves.

Size Range 15MM To 80MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316 Stem Materials PTFE Seat Materials GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – Light Weight Actuator. 2 – Suitable For High Cycle Duties. 3 – Good Control Characteristics. 4 – Available With Electro Pneumatic Positioners. 5 – Namur Mounting Pad For Easy Mounting Of Solenoid Valve. 6 – Double Acting / Single Acting Valve ( NO / NC ). 7 – Position Indicators Standard In All Valves.

Size Range 15MM To 80MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features. 2 – Best Choice For Speedy And Multiple Operation. 3 – Due To Angle Shape, Easy To Mount At Congested Place. 4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids. 5 – Full Flow With Negligible Pressure Drop.

Size Range 15MM To 100MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features. 2 – Best Choice For Speedy And Multiple Operation. 3 – Due To Angle Shape, Easy To Mount At Congested Place. 4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids. 5 – Full Flow With Negligible Pressure Drop.

Size Range 15MM To 80MM Tempreature Range PTFE 180°C / CFT 220°C Pressurre Class Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features. 2 – Best Choice For Speedy And Multiple Operation. 3 – Due To Angle Shape, Easy To Mount At Congested Place. 4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids. 5 – Full Flow With Negligible Pressure Drop.

Size Range 15MM To 80MM Temperature Range PTFE 180°C / CFT 220°C Working Pressure Upto 10 BAR Shutoff Rating Tight Shut off Body Style Y - Body - Screw End, Flange End, Triclover End Flange Drilling 150# Certification CE Approved Body Materials S. S - 304, S. S - 316-L Stem Materials S. S - 304 Seat Materials PTFE, CFT, GFT Plug Materials S. S - 304 Design Standard Manufacture - Standard Testing Standard API - S98, PN10 Face To Face Manufacture - Standard Leakage As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight Applications Air / Water / Oil / Gas / Steam & Chemical Features & Benefits 1 – “Y” Type Construction For On / Off Application Having Self – Cleaning Features. 2 – Best Choice For Speedy And Multiple Operation. 3 – Due To Angle Shape, Easy To Mount At Congested Place. 4 – Due To Angle Seated Body, Insensitive To The Contaminated Fluids. 5 – Full Flow With Negligible Pressure Drop.

Size Range 15MM To 150MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class - 6 Body Style Soft Flange Drilling 150#, 300#, 600# Certification IBR Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL VI for Soft Seating / FCI 70 - 2 Applications Steam / Gas / Water Features & Benefits 1 – Excellent For On / Off Application. 2 – Long Lasting Diaphragm Material. 3 – Easy Maintenance. 4 – Economy Price. 5 – High Temperature 220 ºC.

Size Range 15MM To 300MM Tempreature Range Upto 220°C Max Shutoff Rating Tight Shut Off Leakage Class - 6 Body Style Globe Type Flange Drilling 150#, 300#, 600# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials PTFE / CFT / GFT Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage V to VI / FCI 70 - 2 Applications Steam / Gas / Water & Air Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.

Size Range 15MM To 150MM Tempreature Range Upto 450°C Max Shutoff Rating Tight Shut Off Leakage Class - 4 Body Style Metal To Metal Flange Drilling 150#, 300#, 600# Certification IBR Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials Metal To Metal Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL IV for Metal to Metal / FCI 70 - 2 Applications Steam / Gas / Water Features & Benefits

Size Range 15MM To 300MM Tempreature Range Upto 450°C Max Shutoff Rating Leakage Class - 4 Body Style Globe Type Flange Drilling 150#, 300#, 600# Certification IBR & CE Approved Body Materials WCB / CF8 / CF8M Stem Materials S. S - 304 / S. S - 316 Seat Materials Metal to Metal Plug Materials S. S - 304 / S. S - 316 Design Standard BS 6697 End Connection Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) Testing Standard FCI 70 - 2 Face To Face ISA - 75.03, IEC 534 - 3 Leakage CL IV For Metal to Metal Seating / FCI 70 - 2 Applications Thermic - Oil / Gas / Water Features & Benefits 1 – Precise Regulation With High Flow Capacity. 2 – Large Type Of Trim Top Operating Designs For Various Duty Conditions. 3 – In Line Repairable Design For Easy Maintenance. 4 – Tight Closure Even In Extreme Operating Conditions. 5 – Multi Action Type Actuator ( Direct / Reverse Acting ). 6 – Wide Range Of Actuators To Meet Different Application.

Size Range 1/2“ To 2” Body Material Forged Steel / WCB Seals Material Forged Steel / WCB Leakage Class VI Temperature Range Upto 400°C Woking Pressure 40 kg/Cm² End Connection Screwed / But Weld / Socket Weld / Flanged 150 & 300# Media Steam, Thermic Fluids, Acids, Gas, Vacuum & Other Critical Applications Features & Benefits 1 – Robust Construction: Made from high-strength materials designed to withstand extreme pressures and harsh environments, ensuring durability and reliability. 2 – Manual Operation: Features a user-friendly manual actuator, allowing for precise control over flow and pressure adjustments. 3 – High Pressure Rating: Specifically engineered to handle high-pressure applications, providing confidence in demanding operational conditions. 4 – Leak-Proof Design: Incorporates advanced sealing technology to minimize the risk of leaks, ensuring safe and efficient operation. 5 – Easy Maintenance: Designed for straightforward disassembly and maintenance, reducing downtime and ensuring long-lasting performance. 6 – Compact Size: Space-efficient design allows for easy installation in tight spaces without compromising performance. 7 – Safety Assurance: Complies with industry standards for safety and performance, providing peace of mind in critical applications.

Size Range 1.1/2“ To 48” (40MM To 1200MM) Tempreature Range Upto 220°C Pressurre Class PN 20 Shutoff Rating Tight Shut Off Body Style Lug Type Flange Drilling 150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2 Body Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Stem Materials SS 304 / 316 / 410 / 17-4 PH / 316L / NITRONIC - 50 / DUPLEX 4A / 5A / 6A / 7A Seat Materials PTFE, RPTFE, GFT, CFT, aira 250, TFM - 1600 Disc Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Design Standard BSEN 593, ISI 3095, API 609, AWWA C - 504 Testing Standard API 598 / BSEN - 12266-1 / AWWA C - 504 Face To Face API - 609 / BSEN 558 / AWWA C - 504 / 516 Features & Benefits 1 – Ends: The modular design of our high performance butterfly valve gives easy management of spares with all soft parts Inter-changeable in Wafer, Lug, Double Flange, Designs. Lugged with drilled lug or UNC trapped threaded lug. 2 – Class: Pressure class 150# / 300# pressure rating are ready in available in stock. 3 – MOC: Standard materials such as stainless steel, carbon steel our in stock and higher alloys such as Duplex, Aluminium Bronze, Hast Alloy can be easily made to order. 4 – Sealing Option: The self energised seat can be supplied with various seating option such as PTFE, RTFE, CFT, etc depending on the application. 5 – Interchangiblity: The valves are designed with ISO 5211 top mounting and can be easily inter changed from Handle, Gear “aira” Pneumatic Actuators.

Design & Manufacturer API 609 Category “B”/ BS EN 593 Valve Face To Face Dimension API 609/ BS EN 558 Flange Standard Conformity ANSI B16.5, 16.47 150#/ 300#/ 600# Inspection & Testing FCI-70-2/ B16,104/ ISO 5208/ BS EN 12266-1 Pressure Temperature Rating ASME B 16. Top Mounting ISO 5211 Stem Square Drive ISO 5211 Seat Leakage Class IV/ V/ VI Top Flange Drilling ASME B16.5/ 16.47 Class 150. End Connection Wafer Type- D/F- AWWA C 504 D/F - IS 13095 - 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40 Size Range 1.1/2“ To 48” (Above 48" On Request) (40 MM To 1200 MM) Tempreature Range Upto 400°C Pressure Class 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40 Media Water, Oil, Steam, Air, Gas Chemical & Vaccum. Leakage Class Class VI As Per ANSI B16.104 Body Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Disc Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Seat Material SS 304, SS 304L, SS 316, SS 316L, SS 304 + STALLITE 6, SS 316 + STALLITE 6, SS 316 + STALLITE 21, SS 316 + STALLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A Inspection & Testing API 598/ BSEN 12266-1/ AWWA C 504/ AWWA C 516/ IS 13095 Certifiaction Design Ce Approved, SIL3 Approved, EIL Approved Features & Benefits The aira Triple Offset Wafer Type Butterfly Valve is designed for precise control and durability in demanding applications. 1 – Triple Offset Design: Provides superior sealing performance and reduces torque requirements, ensuring tight shut-off and longevity. 2 – Wafer Style: Compact and easy to install between flanges, saving space and simplifying maintenance. 3 – High-Quality Materials: Constructed from robust materials to withstand harsh environments and high pressures. 4 – Leak-proof Sealing: Enhanced sealing capability reduces the risk of leakage and enhances operational reliability. 5 – Versatile Applications: Ideal for use in various industries including water treatment, chemical processing, and power generation.

Design & Manufacturer API 609 Category “B”/BS EN 593 Valve Face To Face Dimension API 609/BS EN 558 Flange Standard Conformity ANSI B16.5, 16.47 150#/300#/600# Inspection & Testing FCI-70-2/ B16,104/ ISO 5208/ BS EN 12266-1 Pressure Temperature Rating ASME B 16.34 Top Mounting Standard ISO 5211 Stem Square Drive ISO 5211 Seat Leakage Class IV/ V/ VI Top Flange Drilling ASME B16.5/ 16.47 Class 150. End Connection Wafer Type- D/F- AWWA C 504 D/F - IS 13095 - 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40 Size Range 1.1/2“ To 24” (Above 24" On Request) (40 MM To 600 MM) Tepreature Range Upto 400°C Pressure Class 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40 Media Water, Oil, Steam , Air, Gas Chemical & Vaccum. Leakage Class Class VI As Per ANSI B16.104 Body Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Disc Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Seat Material SS 304 , SS 304L, SS 316, SS 316L, SS 304 + STALLITE 6, SS 316 + STALLITE 6, SS 316 + STALLITE 21, SS 316 + STALLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A Certification Design CE Approved, SIL3 Approved, Fire Safe Design Approved, EIL Approved Features & Benefits The aira Triple Offset Lug Type Butterfly Valve is engineered for high performance and reliability in demanding applications. 1 – Triple Offset Design: Provides excellent sealing and minimizes friction, ensuring a tight shut-off and reducing torque requirements. 2 – Lug Style: Designed with integrated lugs for easy mounting and dismounting between flanges, facilitating straightforward installation and maintenance. 3 – Robust Construction: Built from high-quality materials to endure extreme conditions and high pressures. 4 – Enhanced Sealing: Advanced sealing technology minimizes leakage and enhances operational reliability. 5 – Versatile Use: Ideal for various industrial applications, including water treatment, chemical processing, and power generation.

Design & Manufacturer API 609 Category “B”/BS EN 593 Valve Face To Face Dimension API 609/BS EN 558 Flange Standard Conformity ANSI B16.5, 16.47 150#/300#/600# Inspection & Testing FCI-70-2/ B16,104/ ISO 5208/BS EN 12266-1 Pressure Temperature Rating ASME B 16.34 Top Mounting Standard ISO 5211 Stem Square Drive ISO 5211 Seat Leakage Class IV/ V/ VI Top Flange Drilling ASME B16.5/16.47 Class 150. End Connection WAFER TYPE- D/F- AWWA C 504 D/F - IS 13095 - 150# 300# 600# PN-10 PN-16 PN-20 PN-25 PN-40 Size Range 1.1/2“ To 48” (Above 48" On Request) (40 MM To 1200 MM) Tempreature Range Upto 400°C Pressure Class 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 PN-40 Media Water, Oil, Steam, Air, Gas Chemical & Vaccum. Leakage Class Class VI As Per ANSI B16.104 Body Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Disc Material CI, DI, S.G.I, WCB, CF8, CF8M, CA15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Seat Material SS 304, SS 304L, SS 316, SS 316L, SS 304 + STALLITE 6, SS 316 + STALLITE 6, SS 316 + STALLITE 21, SS 316 + STALLITE 21, INCONEL, DUPLEX 4A, DUPLEX 5A Flanged Drilling ASME B16.5/16.47 Class 150 Certification Design CE Approved, SIL3 Approved, Fire Safe Design Approved Features & Benefits The aira Triple Offset Double Flanged Butterfly Valve is engineered for precision and durability in high-pressure and high-demand environments. 1 – Triple Offset Design: Delivers superior sealing performance and reduces torque, providing a tight shut-off and enhancing valve longevity. 2 – Double Flanged Configuration: Designed for robust installation with flanges on both sides, ensuring stability and easy integration into piping systems. 3 – High-Quality Materials: Constructed from durable materials to withstand extreme conditions and high pressures. 4 – Leak-proof Sealing: Advanced sealing mechanism minimizes leakage and ensures reliable operation. 5 – Versatile Applications: Ideal for demanding industrial applications such as water treatment, chemical processing, and power generation.

Size Range 2.1/2“ To 48” (65MM To 1200MM) Tempreature Range Upto 220°C Pressurre Class PN 16 Shutoff Rating Tight Shut Off Body Style Wafer Type Flange Drilling 150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2 Body Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Stem Materials SS 304 / 316 / 410 / 17-4 PH / 316LSS 304 / 316 / 410 / 17-4 PH / 316L Seat Materials EPDM, EPDM - H, VITON Disc Materials WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20 Design Standard BSEN 593, ISI 3095, API 609, AWWA C - 504 Testing Standard API 598 / BSEN - 12266-1 / AWWA C - 504 Face To Face API - 609 / BSEN 558 / AWWA C - 504 / 516 Features & Benefits 1 – Triple Offset Design: Enhances sealing performance and extends valve life by reducing friction and wear. 2 – Precision Engineering: Provides a tight, reliable shutoff, even under high pressure and temperature conditions. 3 – Wafer Type Construction: Simplifies installation between flanges, offering space-saving and flexibility. 4 – Durable Materials: Built to withstand harsh industrial environments and ensure long-term reliability. 5 – Versatile Application: Suitable for a wide range of fluids, including water, chemicals, and gases. 6 – Low Maintenance: Designed for minimal upkeep and dependable operation over time.

Size Range 2.1/2“ To 48” (65MM To 1200MM) Tempreature Range Upto 220°C Shutoff Rating Tight Shut Off Body Style Double Flanged Flange Drilling 150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2 Body Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Stem Materials SS 304 / 316 / 410 / 17-4 PH / 316L Seat Materials EPDM, EPDM - H, VITON Disc Materials WCB, CF8, CF8M, CF3M, DUPLEX ALLOY - 20 Design Standard BSEN 593, ISI 3095, API 609, AWWA C - 504 Testing Standard API 598 / BSEN - 12266-1 / AWWA C - 504 Face To Face API - 609 / BSEN 558 / AWWA C - 504 / 516 Features & Benefits 1 – Triple Offset Design: Provides exceptional sealing and reduces friction, enhancing valve performance and longevity. 2 – Double Flanged Construction: Ensures secure, stable installation and precise alignment in piping systems. 3 – High-Performance Sealing: Delivers reliable shutoff even under high pressure and temperature conditions. 4 – Durable Materials: Built to withstand harsh environments and demanding applications. 5 – Versatile Use: Suitable for a range of fluids, including water, chemicals, and gases. 6 – Low Maintenance: Designed for minimal upkeep, offering dependable long-term operation.

Design & Manufacturer API 60/ BS 5155/ BS EN 593/ IS 13095/ AWWA C-504 Valve Face To Face Dimension API 609 ( Short Pattern ) BSEN 558 ( Long Pattern ) IS 13095 Flange Standard Conformity ASME / ANSI B 16.5 Class 300 & 600 Inspection & Testing API 598 / BSEN 12266-1 / AWWA C 504 / AWWA C 516 / IS 13095 Top Flange Drilling ASME B16.5 / 16.47 Class 150. Seat Leakage Class Class VI As Per ANSI B16.104 End Connection Double Flange - D/F- AWWA C 504 D/F - IS 13095 - 150#, 300#, 600#, PN-10 PN-16 PN-20 PN-25 Size Range 2“ To 24” Double Flange 300# & 600# ( 50 MM To 600 MM ) Temperature Range NBR -10°C To + 90°C EPDM -10°C To + 90°C VITON -10°C To + 90°C Pressure Class 150# , 300# , 600# PN-10 PN-16 PN-20 PN-25 Media Water, Oil, Steam, Air, Gas Chemical & Vaccum Body Material CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Disc Material CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Seat Material EPDM / NBR / VITON Design Standard API 609 / IS : 13095 / BSEN 593 / AWWA C 504 / AWWA C 516 Flange Drilling ASME B16.5 / 16.47 Class 150. Certification Design CE Approved, SIL3 Approved, Fire Safe Approved, EIL Approved Features & Benefits The aira Double Offset Disc Double Flange Butterfly Valve is engineered for high performance and durability in industrial applications. 1 – Double Offset Design: Reduces friction and torque, providing superior sealing and a tight shut-off. 2 – Double Flange Configuration: Ensures secure mounting with flanges on both sides for stability and ease of installation. 3 – Disc Design: The offset disc arrangement enhances flow control and minimizes wear. 4 – Robust Construction: Made from high-quality materials to handle extreme conditions and high pressures. 5 – Versatile Applications: Ideal for use in water treatment, chemical processing, and power generation.

Design & Manufacturer API 609 CATEGORY “B” / MSS SP - 68 BS EN - 593 Valve Face To Face Dimension API 609 CATEGORY “B”/ ISO 5752 MSS SP - 68 / BS EN - 558 Flange Standard Conformity ASME / ANSI B 16.5 Class 150 ASME / ANSI B 16.47 Series “A & ”B“ Class 150 / DIN 1092 - 1 Inspection & Testing API 598 / BS EN 12266 - 1 / AWWA C 504 / AWWA C 516 / IS 13095 Pressure Temperature Rating ASME B 16.34 Top Flange Drilling Bolt Hole ISO 5211 Stem Dimension Square Drive To ISO 5211 Seat Leakage Class Class VI As Per ANSI B 16, 16. 104 / FCI-70 -2, ISO - 5208 End Connection Wafer Type - D/F- AWWA C 504 D/F - IS 13095 - 150#, 300#, 600#, PN-10 PN-16 PN-20 PN-25 Certification Design CE Approved, SIL3 Approved, Fire Safe Design Approved Size Range 2.1/2” To 48" ( 65 MM To 1200 MM ) Temperature Range NBR -10°C To + 90°C EPDM -20°C To + 120°C VITON -0°C To + 220°C PTFE -25°C To + 180°C Pressure Class 150#, 300#, 600# PN-10 PN-16 PN-20 PN-25 Media Water, Oil, Steam, Air, Gas Chemical & Vaccum Leakage Class Class VI As Per ANSI B16.104 Body Material CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Disc Material CAST IRON, DUCTILE IRON, S.G IRON, WCB, CF8, CF8M, CA 15, WCC, LCB, WC6, WC9, WC12, HAST ALLOY C, NICKEL ALUMINIUM BRONZE, DUPLEX 4A, 5A, 6D, SUPER DUPLEX, ALLOY 20 Seat Material EPDM / NBR / VITON Design Standard API 609 / IS : 13095 / BSEN 593 / AWWA C 504 / AWWA C 516 Flange Drilling ASME B16.5 / 16.47 Class 150. Features & Benefits The aira Double Offset Disc Wafer Type Butterfly Valve is designed for precision and reliability in various industrial applications. 1 – Double Offset Design: Provides enhanced sealing performance and reduced wear, ensuring a tight shut-off and long service life. 2 – Disc Configuration: Features a unique disc design that minimizes friction and torque requirements, improving operational efficiency. 3 – Wafer Style: Compact and lightweight design for easy installation between flanges and space-saving in piping systems. 4 – Durable Construction: Constructed from high-quality materials to withstand harsh conditions and high pressures. 5 – Versatile Use: Suitable for applications in water treatment, chemical processing, HVAC systems, and more.

Size Range 12“ To 60” (200MM To 1500MM) Temperature Range Upto 600°C Working Pressure PN10 Shutoff Rating Tight Shutoff Body Style Double Flange Flange Drilling 150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2 Body Materials M.S, SS 304 / 316 Stem Materials SS 304 / 316 / 410 / 17-4 PH / 316L Seat Materials SS 304 / 316 Disc Materials M.S / SS 304 / 316 Design Standard BSEN 593, ISI 3095, API 609, AWWA C 504 Testing Standard API 598, BSEN - 12266-1, AWWA C 504 Face To Face API - 609, BSEN 558, AWWA C 504 / 516 Features & Benefits 1 – Double Offset Design: Reduces friction and wear, providing enhanced sealing and extended valve life. 2 – Metal Construction: Ensures durability and strength, suitable for high-pressure and high-temperature applications. 3 – Grafoil Laminated Seat: Offers superior resistance to high temperatures and pressures, ensuring a tight, reliable seal. 4 – Double Flanged Construction: Provides secure, stable installation and alignment in piping systems. 5 – Versatile Application: Ideal for demanding environments, including chemical processing, power generation, and industrial systems. 6 – Low Maintenance: Designed for minimal upkeep while delivering consistent, dependable performance.

Size Range 3“ To 60” (80MM To 1500MM) Tempreature Range Upto 220°C Pressurre Class PN 50 Shutoff Rating Tight Shut Off Body Style Wafer Type Flange Drilling 150#, 300#, AWWA, Series-A, Series-B, EN 1092-1, EN 1092-2 Body Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Stem Materials SS 304 / 316 / 410 / 17-4 PH / 316L / NITRONIC - 50 / DUPLEX 4A / 5A / 6A / 7A Seat Materials EPDM, EPDM - H, VITON Disc Materials WCB, CF8, CF8M, CF3M, DUPLEX, ALLOY - 20 Design Standard BSEN 593, ISI 3095, API 609, AWWA C 504 Testing Standard API 598, BSEN - 12266-1, AWWA C 504 Face To Face API - 609, BSEN 558, AWWA C 504 / 516 End Connection 150#, 300# Features & Benefits 1 – Double Offset Design: Reduces friction and wear, enhancing performance and extending valve life. 2 – Rubber Seat: Provides a reliable, tight seal to minimize leakage. 3 – Wafer Type Construction: Facilitates easy installation between flanges and saves space. 4 – Versatile Application: Suitable for water, wastewater, and other fluid handling systems. 5 – Durability: Designed for long-lasting performance and cost-effectiveness. 6 – Compact and Lightweight: Ideal for various industrial and commercial settings.

Size Range 1.1/2“ To 24” Tempreature Range 0 To 140°C Pressure Class Upto 3 Kg/Cm² Media Cement / Fly Ash Powder / Coal Gas / Sugar Slurry / Food Industry Seat Material EPDM Disc Material CF8 Body Material Cast Iron Features & Benefits The aira 2 Piece Replaceable Muffler Butterfly Valve is designed for efficient flow control and noise reduction in various industrial applications. 1 – 2 Piece Construction: Facilitates easy maintenance and replacement of internal components without removing the valve from the pipeline. 2 – Replaceable Muffler: Equipped with a replaceable muffler to reduce operational noise and vibration. 3 – Reliable Sealing: Provides effective sealing to minimize leakage and ensure a tight shut-off. 4 – Durable Materials: Constructed from high-quality materials to withstand harsh conditions and extend the valve’s service life. 5 – Versatile Use: Ideal for applications in water treatment, HVAC systems, and other industrial processes requiring noise reduction and flow control.

Size Range 1“ To 48” (25MM To 1200MM) Tempreature Range -25°C To 80°C (Depending On MOC) Pressurre Class PN 6 / 10 / 20 & 25 Body Type Short Wafer Type Lug Seat Type Intergrally moulded with the bod (Renewable Seat On Request) Flange Drilling IS 6392 / EN 1092 - 1 / EN 1092 - 2 / ASME B 16.5 150# Body Materials S.G.I / C.I / D.I / WCB Stem Materials SS 304 / 316 / 410 / 17 - 4 PH / Super Duplex 2507 / 2205 Seat Materials NBR / EPDM Disc Materials S.G.I / CF8 / CF8M / CF3M / ASTM A - 995 Seat Leakage Tight Shut Off ( Class VI ) Flange Drilling ISO 5211 Design And Manufacturer API 609 Category A / IS : 13095/ BS EN 593 Valve Face To Face Dimension Short Wafer As Per ISO 5752 TAB 5 / API 609 Category A ISO 5752 TAB 1 ( BS 5155 ) Flange Standard ASME B16.5 / ASME B 16.47 Series “A” Class 150 Inspection & Testing API 598 / BS EN 12266 - 1 End Connection Wafer type double flange suit #150, Table ‘D’, Table ‘E’ & IS 6392 Table 11 (PN / PN 1.6) Features & Benefits 1 – Rubber Lining: Provides excellent sealing and protection against corrosion, enhancing durability and reducing leakage. 2 – Concentric Disc Design: Features a concentric disc arrangement for smooth operation and minimal friction. 3 – Lug Type: Equipped with lugs for easy mounting and removal, facilitating installation and maintenance. 4 – Durable Construction: Made from high-quality materials to withstand challenging conditions and extend the valve’s lifespan. 5 – Versatile Applications: Suitable for water treatment, HVAC systems, and other industrial processes requiring reliable flow control.

Size Range 1.1/2“ To 48” (40MM To 1200MM) Tempreature Range -20°C To 80°C For Nitrile Seat (Depending On MOC) Pressurre Class PN 10 / PN 16 ( PN 20 On Request ) Body Style Double Flanged Seat Materials NBR / EPDM / Viton Flange Drilling IS 6392 / EN 1092 - 1 / EN 1092 - 2 / ASME B 16.5 150# End Connection Double Flange As Per ASME B16.5 / ASME B 16.47 Class 150 Body Materials S.G.I / WCB / Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN Stem Materials SS 304 / 316 / 410 / 17 - 4 PH / Super Duplex 2507 / 2205 Disc Materials Gray Iron / Cast Steel / Ductile Iron / CF8 / CF8M / CF3M / CD4MCuN / S.G. Iron with Teflon / Teflon / Powder / Nylon Coated / Rubber Line / ASTM A - 995 Design And Manufacturer Short Wafer type Double Flanged Centric Disc Butterfly Valves with Single Piece Rubber Lined Body Testing Standard BSEN 12266 - 1, API 598 Face To Face BSEN 558 Features & Benefits The aira Rubber Lined Concentric Disc Double Flange Butterfly Valve is engineered for reliable sealing and durability in a range of industrial applications. 1 – Rubber Lining: Provides effective sealing and protection against corrosion, reducing leakage and extending valve life. 2 – Concentric Disc Design: Ensures smooth operation and minimal friction, enhancing control and performance. 3 – Double Flange Configuration: Features flanges on both sides for secure mounting and ease of installation in piping systems. 4 – Durable Construction: Constructed from high-quality materials to withstand challenging conditions and high pressures. 5 – Versatile Use: Ideal for water treatment, HVAC systems, and other industrial processes where reliable and efficient flow control is required.

Design & Manufacturer ASME B16.34 / BS EN ISO 17292 Valve Face To Face Dimension As Per Manufacturer Std. Inspection & Testing API 598/ ISO-5208/ BS EN 12266-1 Size Range 1/2“ To 2” SCREWED/ SOCKET WELD Tempreature Range Upto 180°C Pressurre Class 800# Certification POD Seat Material CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK Leakage Class ISO 5208 Class VI/ FC1-70-2/ ASME B16,16.104 End Connection ISO 7-1 For Screwed BSPT/ ASME B1.20.1 For Screwed NPT/ ASME B 16.11 for Socket Weld Media Air/ Water/ Oil & Gas Body Material A105, A106, AF 16.11 Ball Material CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M Ball Type Solid Stem Material AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL Features & Benefits 1 – Process Steam Service. 2 – Chemical & Petrochemicals. 3 – Tyre Industries. 4 – Power Plants. 5 – Textiles.
