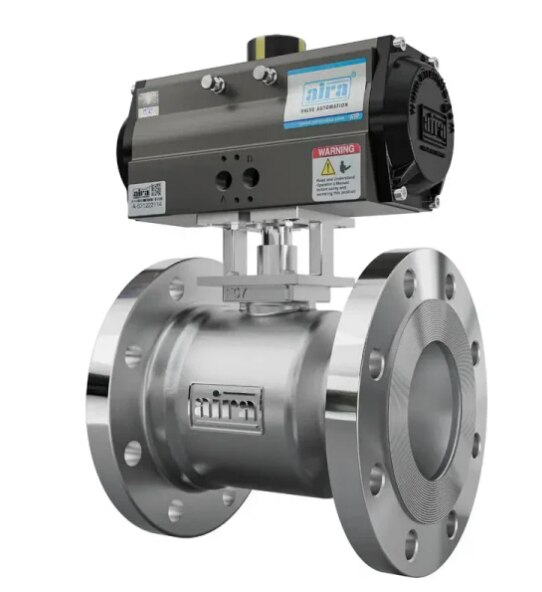

“aira” Offers Automation And Manually Operated Flanged Ball Valves Feature A Compact, One Piece Body Design With Flanged Insert. The One Piece Body Suppliers Maximum Structural Strength While Minimizing The Number Of Potential Leak Paths. A Floating Ball Design Offers Low Torque And Increase Valve Cycle Life. These Rugged, Economical, End-entry Flanged Ball Valves Are The Ideal Solutions From The “aira” Product Line For Industrial Applications. Specification & Standard Design & Manufacturer BS EN ISO 17292 / ASME B 16.34 Valve Face To Face Dimension ASME B 16.10 - 300# Inspection & Testing API 598 / ISO-5208 / BS EN 12266-1 Temperature Range PTFE : Upto 180°C / PEEK : 250° , RPTFE : Upto 220°C / AIRA250 Media Air / Water / Oil & Gas Ball Material CF8, CF8M, WCB+ ENP, HAST ALLOY, DUPLEX, MONEL, CF3M Stem Material Aisi 410, Ss 304, Ss 316, Ss 304l, Ss 316l, Duplex 2205, Duplex 2507, Monel Flange Drilling Asme B 16.5 Class 300#/ Din/ Jis Leakage Class ISO 5208 Class VI / B16.104 , ANSI FCI 70-2( BUBBLE TIGHT SHUTOFF) End Connection ASME B 16.5 CLASS 300 FOR FLANGE END Size Range 1/2“ to 6” Flanged 300#
