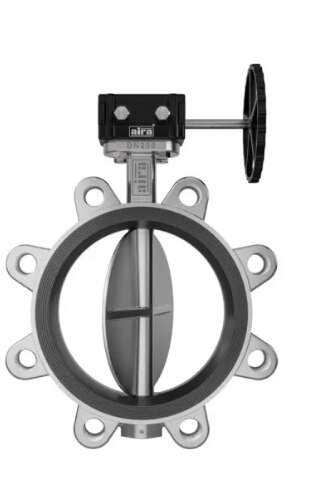

Description

Size Range 1“ To 48” (25MM To 1200MM) Tempreature Range -25°C To 80°C (Depending On MOC) Pressurre Class PN 6 / 10 / 20 & 25 Body Type Short Wafer Type Lug Seat Type Intergrally moulded with the bod (Renewable Seat On Request) Flange Drilling IS 6392 / EN 1092 - 1 / EN 1092 - 2 / ASME B 16.5 150# Body Materials S.G.I / C.I / D.I / WCB Stem Materials SS 304 / 316 / 410 / 17 - 4 PH / Super Duplex 2507 / 2205 Seat Materials NBR / EPDM Disc Materials S.G.I / CF8 / CF8M / CF3M / ASTM A - 995 Seat Leakage Tight Shut Off ( Class VI ) Flange Drilling ISO 5211 Design And Manufacturer API 609 Category A / IS : 13095/ BS EN 593 Valve Face To Face Dimension Short Wafer As Per ISO 5752 TAB 5 / API 609 Category A ISO 5752 TAB 1 ( BS 5155 ) Flange Standard ASME B16.5 / ASME B 16.47 Series “A” Class 150 Inspection & Testing API 598 / BS EN 12266 - 1 End Connection Wafer type double flange suit #150, Table ‘D’, Table ‘E’ & IS 6392 Table 11 (PN / PN 1.6) Features & Benefits 1 – Rubber Lining: Provides excellent sealing and protection against corrosion, enhancing durability and reducing leakage. 2 – Concentric Disc Design: Features a concentric disc arrangement for smooth operation and minimal friction. 3 – Lug Type: Equipped with lugs for easy mounting and removal, facilitating installation and maintenance. 4 – Durable Construction: Made from high-quality materials to withstand challenging conditions and extend the valve’s lifespan. 5 – Versatile Applications: Suitable for water treatment, HVAC systems, and other industrial processes requiring reliable flow control.
