aira solenoid valves

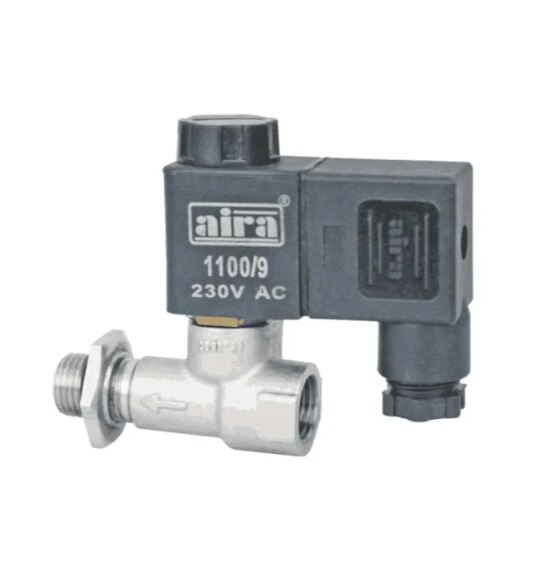

Size Range 1/4" Screwed Temperature Range Upto -5°C To 80°C max. Working Pressure 0 To 7 Bar

Size Range 1/4“, 3/8” To 1/2" Screwed Temperature Range -5°C To 85°C (High Temperature On Request) Working Pressure Upto 20 Bar 1 – 2/2 Way Design: Two-port valve for on/off control of fluid flow. 2 – Automation Ready: Ideal for automated systems and processes. 3 – Solenoid Operated: Electrically controlled for precise actuation. 4 – Compact Size: Space-efficient for various installations. 5 – Durable Construction: Built for reliability and longevity. 6 – Quick Response: Fast actuation for efficient operation. 7 – Versatile: Suitable for a wide range of fluids and applications. 8 – Low Maintenance: Designed for minimal upkeep.

Size Range 1/2“ To 3/4” Screwed Temperature Range Upto 150°C for Steam, 95°C for Hot Water Working Pressure 0 To 9 Bar 1 – Direct Acting Mechanism: Operates Directly With The Solenoid, Providing Quick And Responsive Control Without the need for a Pilot Valve 2 – 2/2 Way Configuration: Features two ports and two positions, allowing for straightforward on/off control of fluid flow 3 – Durable Construction: Made with robust materials to ensure reliable performance and longevity in various operating conditions 4 – Compact Design: Space-efficient and easy to install in tight or constrained spaces 5 – Versatility: Suitable for a range of applications involving gases and liquids, with compatibility across various industries

Size Range 1/4“, 3/8”, 1/2" Temperature Range Upto 150°C Working Pressure Upto 70 kg/cm² 1 – Easy Replacement Of Coil As Both AC And DC Type Use Same Enclosure. 2 – Can Test The Operation In Manual Switch Without Power Source. 3 – High Durability As Valve Body Is Pneumatic Pressure Operating Type. 4 – We Provide Flameproof Coil ip67. 5 – We Also Provide Weatherproof Coil ip65. 6 – Mounting In Any Type Of Position.

“aira” Offers 2/2 Way Direct Acting Solenoid Valve Is A High – Performance Valve Designed For Efficient Fluid Control In Pneumatic Systems This Normally Closed Valve Remains Shut When De – Energized, Ensuring Safety And Preventing Unintended Flow. Specification & Standard Size Range 1/4“, 3/8”, 1/2" Tempreature Range Upto 150°C Pressure Class Upto 70 kg/cm² Media Air, Water Body Material CF8, CF8M (Aluminium, Brass On Request Available) Coil Voltage 12V, 24V, 48V, 110V, 230V, AC/DC Coil Rating Continuous Rated

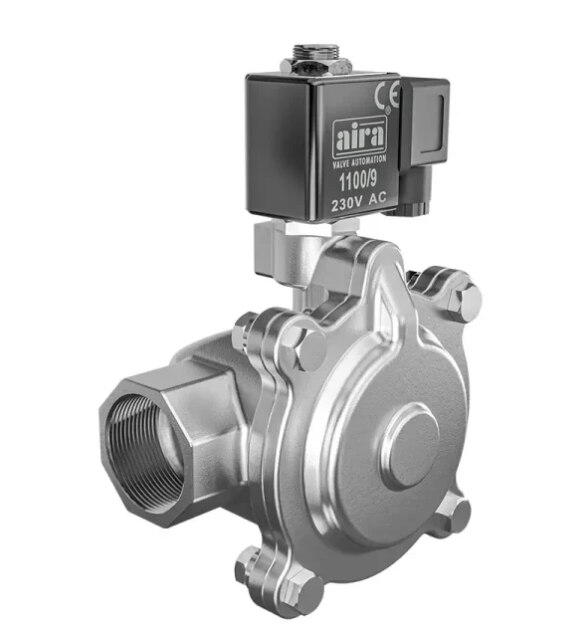

“aira” Offers HIGH FLOW Diaphragm type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations. valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application. Specification & Standard Size Range 1/2“ To 4” End Connection Screwed End Tempreature Range Upto 120°C Body Material CF8, CF8M, CF3M Media Semi Steam, Steam Certification CE

“aira” Offers high performance diaphragm operated pulse and pilot solenoid valves with threaded ports. Available with integral pilot or as remotely pilot valves. Out let at 90O to inlet. The pulse valves have just one moving part, the Springless construction of diaphragm providing fast ON-OFF operation. This high speed operation saves compressed air and provides kind of shock wave necessary to free the dust from filter bags. Specification & Standard Size Range 1/2“ To 1.1/2” Screwed Tempreature Range Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide ) Pressurre Class 0.6 To 8.5 Bar Max Media Dust Collector Application, Cartridge Filter, Envelope Filter. Body Material Aluminium Seat Material NBR Certification CE

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Specification & Standard Size Range: 1/2“ To 3” Screwed Tempreature Range Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide ) Pressurre Class 0.6 to 10 Bar Max Media Must Collector Application, Ceramic Filter Body Material Aluminum Seat Material NBR Certification CE

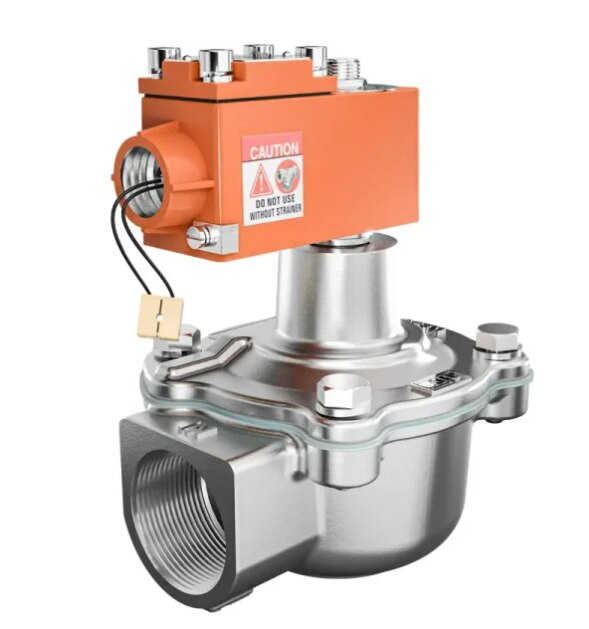

“aira” Stainless Steel Diaphragm Valve is designed for dust collector applications, especially for reverse pulse-jet filter cleaning of various filter types. It features a 90° inlet and outlet port, with a single diaphragm and threaded female gas connections. Ideal for aggressive environments prone to corrosion, it is suitable for chemical processes, off-shore refineries, nuclear environments, and also for pharmaceutical, food, and medical-grade applications. Specification & Standard Size Range 1" Screwed Tempreature Range Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide ) Pressurre Class 0.6 to 8.5 Bar Max Media Chemical Process, Food And Grain, Off-Shot Plant Body Material CF8, CF8M, CF3M Seat Material PU Certification CE

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90O to inlet. Specification & Standard Size Range 1/2“ To 3” Screwed Tempreature Range Up To 80°C (High Temperature 125°C on Request) Working Pressure 0.6 To 8.5 Kg/cm² End Connection Screwed End Diaphragm NBR / Viton Body Aluminium

“aira” Offers Superior performance, Easy maintenance diaphragm valve available with dresser nut. Outlet at 90O to inlet valve are available as remote pilot valve and may be converted to integral pilot. Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations Including bag filters, Cartridge filters, Envelope filters, Ceramic Filters & Sintered metal fiber filters. Specification & Standard Size Range 1“ To 1.1/2” Screwed Tempreature Range Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide ) Pressurre Class 0.6 To 8.5 Bar Max Media Dust Collector application, Bag Filter, Envelope Filter, Ceramic Filter Body Material Aluminium Seat Material NBR, Viton Certification CE Disc Material Aluminium

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet. Specification & Standard Size Range 1/2“ To 3” Screwed Tempreature Range Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide ) Pressurre Class 0.6 To 8.5 Bar Max Media Envelope Filter, Cartridge Filter, Bag Filter, Ceramic Filter Body Material Aluminium Seat Material NBR, Viton Certification CE
