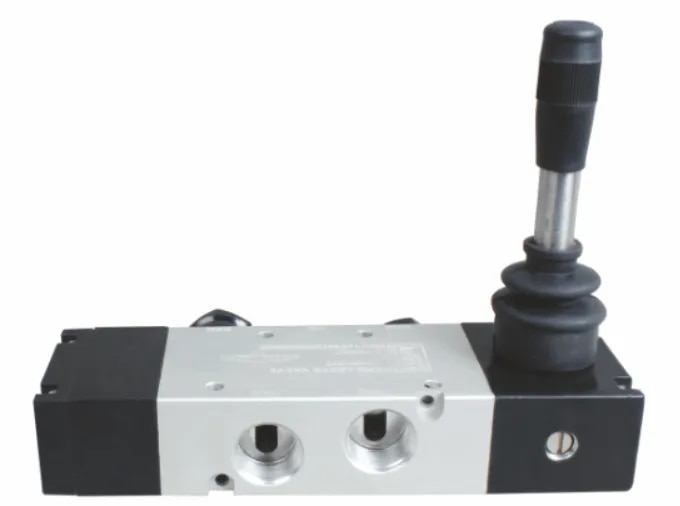

5/3 Way Hand Lever Valve Center Spring
Description
Model 3AD-HR-605
Size 1/4”
Body Aluminium Anodized
Valve Type PAN | PHN | PRN
Seals Nitrile
Pressure 10 Kg/Cm²
Temperature 5 to 55°C
Leakage Bubble Tight
Media Compressed Air (Filtered & Lubricated)
Description
Airmax’s 5/3 Way Hand Lever Valve with Center Spring is a dependable solution for controlling airflow in pneumatic systems. This compact and durable valve features a spring return detent mechanism, ensuring automatic return to the center position upon lever release. It’s available in two sizes (1/4″ and 1/2″) to cater to various application needs.
The valve boasts an aluminum body and a nitrile seal for strength and reliability. It operates within a pressure range of 10 kg/cm² and a temperature range of 5 to 55 °C. Additionally, the valve provides a bubble tight seal, eliminating air leakage.
Airmax Pneumatics, a leading manufacturer, supplier, and exporter of pneumatic control solutions in India and globally, offers 5/3 way hand lever valve detent in its premium AD-20 Series.
