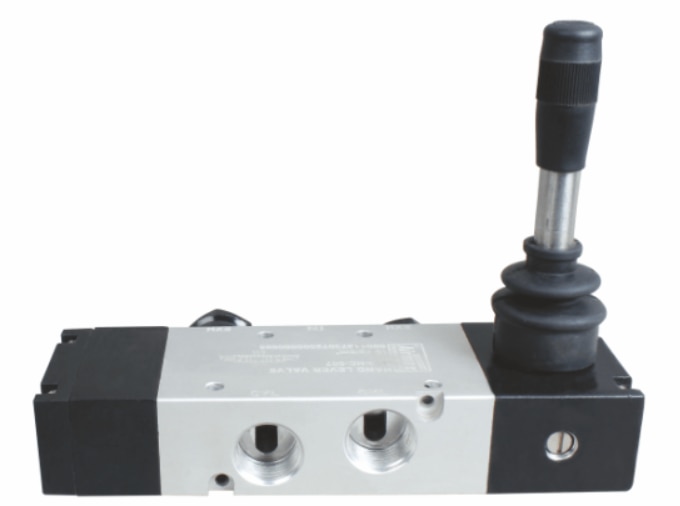

Model 3AD-HR-605 Size 1/4” Body Aluminium Anodized Valve Type PAN | PHN | PRN Seals Nitrile Pressure 10 Kg/Cm² Temperature 5 to 55°C Leakage Bubble Tight Media Compressed Air (Filtered & Lubricated) Description Airmax’s 5/3 Way Hand Lever Valve with Center Spring is a dependable solution for controlling airflow in pneumatic systems. This compact and durable valve features a spring return detent mechanism, ensuring automatic return to the center position upon lever release. It’s available in two sizes (1/4″ and 1/2″) to cater to various application needs. The valve boasts an aluminum body and a nitrile seal for strength and reliability. It operates within a pressure range of 10 kg/cm² and a temperature range of 5 to 55 °C. Additionally, the valve provides a bubble tight seal, eliminating air leakage. Airmax Pneumatics, a leading manufacturer, supplier, and exporter of pneumatic control solutions in India and globally, offers 5/3 way hand lever valve detent in its premium AD-20 Series.
