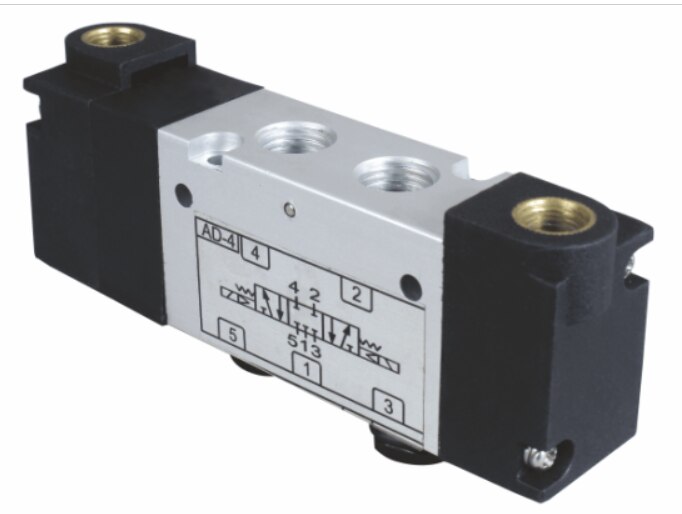

Model 3ADDP-5 Size 1/4”, 1/2” Body Aluminium Anodized Valve Type PAN | PHN | PRN Seals Nitrile Pressure 1 to 10 Kg/Cm² Temperature 5 to 55°C Leakage Bubble Tight Media Compressed Air (Filtered & Lubricated) Description This 5/3 way 3 position double pilot valve is designed to control the flow of compressed air in a pneumatic system. It utilizes a spool type design, featuring a sliding spool to regulate airflow. The valve comes in two sizes: 1/4″ and 1/2″. It can withstand a pressure range of 1 to 10 Kg/cm² and temperatures between 5 to 55 ˚C. Notably, the valve is bubble tight, signifying an exceptionally low leakage rate. In addition to manufacturing these valves, we at Airmax Pneumatics are proud to supply and export them across India and worldwide. If you’re looking for a step up from our basic model, consider this RM series 5/3 way 3 position double pilot valve medium-range option with added features.
