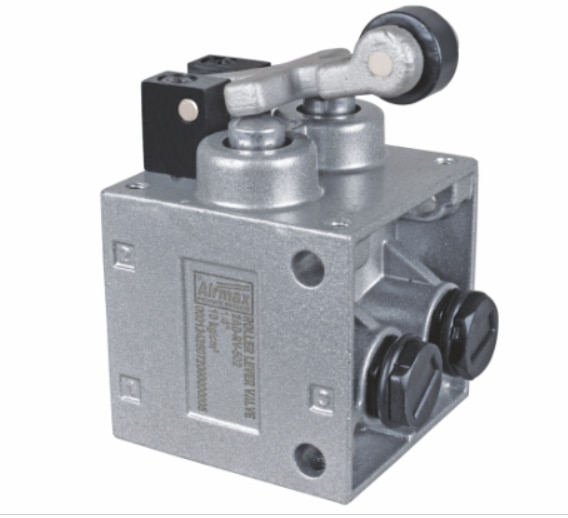

Model 2AD-RV-502 (5/2) Size ¼” Body Aluminium Pressure Die Cast Seals Hi - Nitrile Pressure Upto 10 Kg/cm² Temperature Upto 55 °C (Max.) Leakage Bubble Tight Media Compressed Air (Use Filtered & Lubricated) Description The 5/2 Poppet Type Roller Lever Valve is a directional control valve used in pneumatic systems. It is manufactured by Airmax in Ahmedabad, India, and is also available for supply and export worldwide. The valve is known for its compact and lightweight design, made of aluminum for durability. It has a maximum pressure of 10 kg/cm² and a maximum temperature of 55 °C. Notably, the valve is bubble tight, meaning there is no leakage. Achieve smooth transitions by integrating a 5/2 poppet type roller lever valve with a 3/2 poppet type finger lever valve for enhanced pneumatic control.
