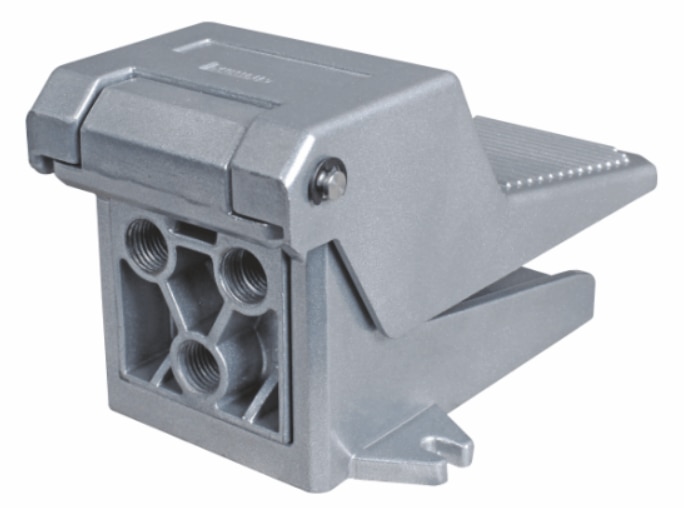

Model 2AD-FV-502 (5/2 Detent) | 2AD-FS-502 (5/2 Spring Return) Size 1/4" Body Aluminium Pressure Die Cast Seals Hi - Nitrile Pressure Upto 10 Kg/cm² Temperature Upto 55 °C (Max.) Leakage Bubble Tight Media Compressed Air (Use Filtered & Lubricated) Description The product description is for 5/2 Foot Operated Valves (Detent/Spring Return) manufactured by Airmax Pnumatic. They are used to control the flow of compressed air in pneumatic systems. They are available in two models: 2AD-FV-502 (5/2 Detent) and 2AD-FS-502 (5/2 Spring Return). They have a size of 1/4″, a body made of aluminum pressure die cast, and seals made of hi-nitrile. They can withstand a pressure of up to 10 kg/cm² and a temperature of up to 55 °C (Max). They have a leakage of bubble tight and use compressed air (filtered and lubricated) as the media. Airmax also manufactures, supplies, and exports these valves in India and worldwide. Additionally, the AD-20 Series is a premium product line that offers even higher quality and performance. Looking for compact solutions? The 3/2 foot operated valve offers efficient control with fewer ports, perfect for straightforward applications.
